Specification for MR-AUS70-RD05-RF05 Counter-UAV System

Product Description:

The MR-AUS70-RD05-RF05 Counter-UAV System integrates spectrum detection, radar detection, electro-optical tracking, interference response, navigation signal control, and a low-altitude target prevention, control and identification platform. The system uses spectrum detection and radar detection for target verification, then guides the electro-optical system for detection, tracking and identification. After the target type is confirmed, the system can link the radio interference response subsystem to interrupt UAV remote-control signals and apply navigation signal control, helping authorized operators manage low-altitude UAV activities within protected areas.

Get Free Quote

Product Introduction

The MR-AUS70-RD05-RF05 is a medium side-mounted integrated Counter-UAV system designed for low-altitude security protection.

It combines spectrum detection, radar detection, electro-optical tracking, AI target recognition, radio-link interference response, navigation signal control, and centralized platform management.

The system supports UAV signal detection and analysis, radar target detection, visible-light and thermal imaging tracking, target classification, coordinated system linkage, electronic map display, track recording, video playback, multi-screen display, and unattended operation.

Application scenarios

Airport Low-Altitude Security

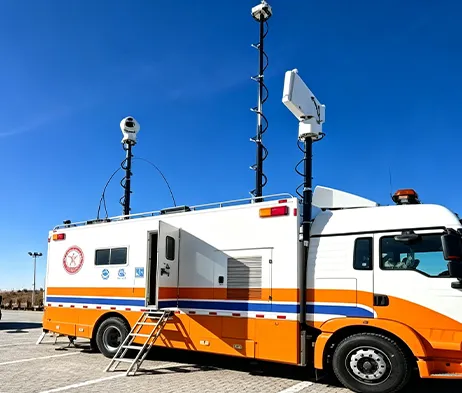

Conference Center Security
Conference Center Securit

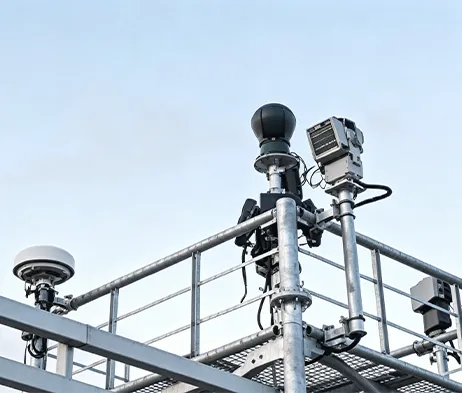

Restricted Facility Protection

Product Features and Technical Specifications

Highly Integrated System Architecture
Integrates spectrum detection, radar detection, electro-optical tracking, interference response, navigation signal control, and platform management into one coordinated system.

Multi-Function Spectrum Detection
Supports UAV signal detection, spectrum analysis, direction finding, and multi-target detection.

Radar Detection Capability
The radar subsystem adopts digital beam forming technology and supports target detection, tracking, and track output.

Electro-Optical Tracking
The electro-optical subsystem combines visible-light imaging, infrared thermal imaging, AI recognition, and servo pan-tilt tracking.

Coordinated Response Mechanism
After target verification, the system can link detection, tracking and response modules for coordinated low-altitude UAV management.

Modular Structure
Detection modules, response modules, and optical configurations can be flexibly configured according to project requirements.

Platform-Based Management
The RGS2000 platform supports centralized control, radar-electro-optical linkage, data fusion display, recording and playback, electronic map display, and unattended operation.

Technical Parameters

Parameter	Specification	Parameter	Specification
Model & Working Range
Model Name	MR-AUS70-RD05-RF05 Counter-UAV System	Typical Target	DJI Phantom 4, DJI Mavic 3 under good weather and electromagnetic conditions
Spectrum Direction Finding Range	≥5 km	Radar Detection Range	≥5 km
Visible-Light Tracking Range	≥4 km	Thermal Imaging Tracking Range	≥2 km
Interference Range	≥5 km	Spoofing Range	≥5 km
Spectrum Detection
Frequency Range	300 MHz ~ 6000 MHz	Direction Finding Bands	845 MHz, 915 MHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz
Technical System	Spectrum features, positioning analysis	Direction Finding Accuracy	≤5° RMS under standard site conditions
Simultaneous Detection Capacity	≥30 UAVs
Radar Detection
Radar Band	X-band	Refresh Rate	2 s
Target Capacity	≥200 tracks	Close-Range Blind Zone	≤100 m
Azimuth Coverage	0° ~ 360°	Elevation Coverage	0° ~ 40°
Detection Altitude	≥800 m	Accuracy RMS	Azimuth ≤0.4°, Elevation ≤0.4°, Range ≤10 m
Infrared Thermal Imaging
Detector	Uncooled VOx infrared focal plane array	Resolution	640 × 512
Lens	23 ~ 230 mm, 10× continuous optical zoom	Lens Control	Motorized zoom, manual / automatic focus
Image Enhancement	SDE digital image detail enhancement technology
HD Visible-Light Camera
Sensor	1/1.8″ starlight CMOS, ICR day/night switching	Resolution	2688 × 1520
Focal Length	12.5 ~ 775 mm HD motorized zoom lens	Defog	Supports optical / electronic dual defog
AI Tracking
Implementation	Front-end embedded hardware recognition and tracking	Tracking Mode	Manual tracking, automatic tracking, radar linkage supported
Recognition	Supports classification of people, vehicles, vessels, UAVs and birds	Dataset Requirement	Customer assistance required for dataset provision
Servo Pan-Tilt
Structure	Side-mounted, coaxial	Horizontal Range	N × 360° continuous rotation, mechanical lock after power-off
Pitch Range	-10° ~ +60°, with software limit, programmable	Rotation Speed	Horizontal 0.01° ~ 100°/s, Pitch 0.01° ~ 70°/s
Positioning Speed	Horizontal ≥120°/s, Pitch ≥100°/s	Acceleration	Horizontal 100°/s², Pitch 100°/s²
Interference & Spoofing
Interference Countermeasure Bands	915 MHz / 1.4 GHz / 2.4 GHz / 5.2 GHz / 5.8 GHz	Single-Channel Power Amplifier	≥50 W
Interference Power	Adjustable	Navigation Interference Bands	Adaptable to GPS, BD, GLONASS, GALILEO
Navigation Spoofing Bands	GPS-L1, GLONASS-R1, BD-B1, GALILEO-E1	Supported Functions	Directional driving-away, navigation interference, regional no-fly control
Azimuth Coverage	0° ~ 360°	Interference Mode	Directional interference, spoofing
Other Function	Supports simultaneous link interference and navigation interference	Power	≤1200 W
Overall System
Network Interface	1 × 100M / 1000M adaptive Ethernet port	Power Supply	AC220V ±20%, 50Hz
System Power Consumption	≤2000 W	Dimensions	L1300 mm × W600 mm × H2000 mm, reference
Total Weight	≤240 kg	Protection Rating	IP66
Operating Temperature	-40℃ ~ +60℃
RGS2000 Low-Altitude Target Prevention, Control and Identification System
Integrated Control & Display	Centralized control and display of radar, electro-optical, detection and interference systems	Situation Display	Dynamic display of UAV target points, spectrum direction finding and track information; spectrum-radar data fusion display
Information Recording	Supports radar, spectrum target tracks and video recording and playback	Auxiliary Tools	Supports distance, area and angle measurement; static calibration azimuth calculation; radar-EO assisted calibration

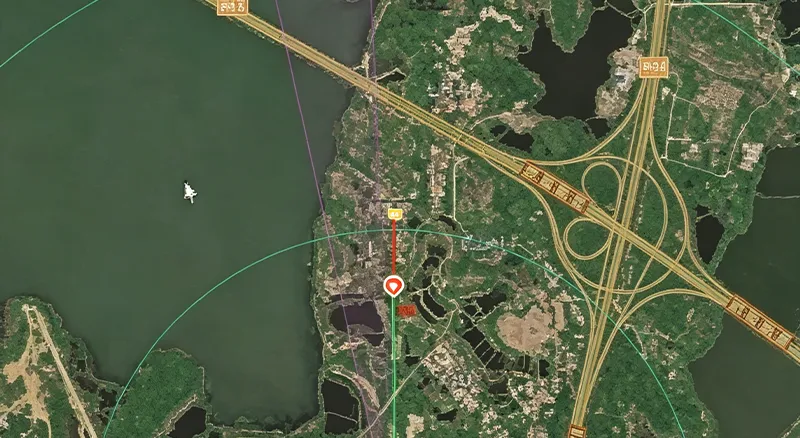

Electronic Map	Supports electronic maps and device coordinate locations; online and offline 2D maps	Multi-Screen Display	Supports split-screen display of video preview, electronic map, video monitoring, video playback and information management
Unattended Operation	Supports track data fusion, automatic radar-EO linkage and unattended system operation
