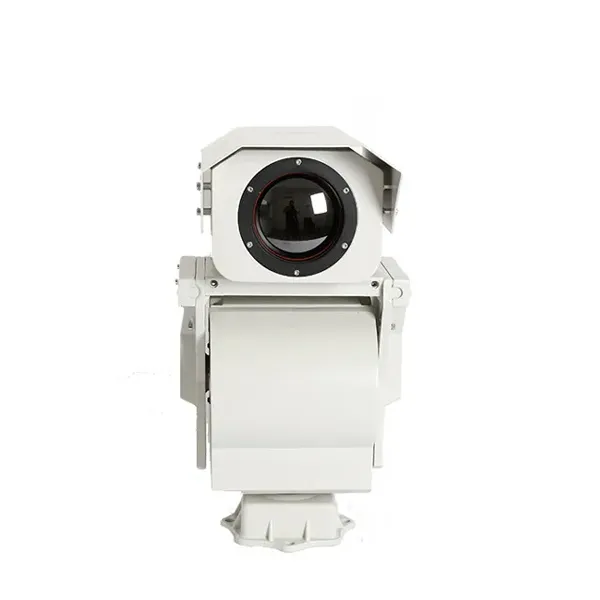

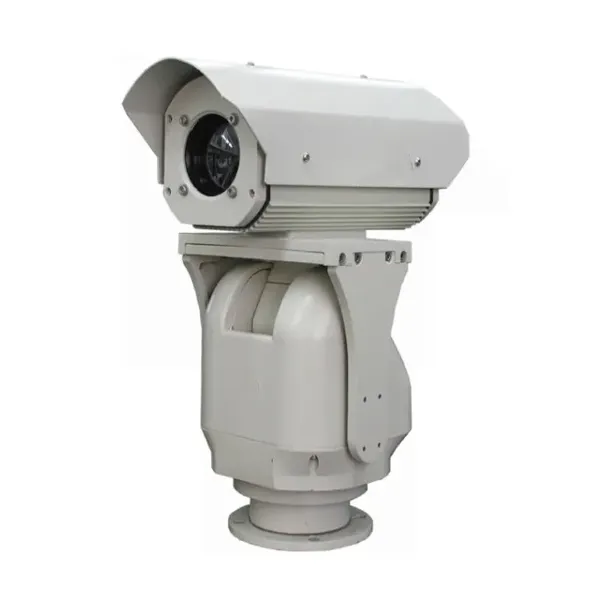

Specification for MR-TC6105 Uncooled Thermal Imaging Camera

Product Description:

The MR-TC6105 uncooled long-range thermal night vision camera is a medium-range thermal imaging system designed for 24-hour security monitoring. Based on fifth-generation uncooled infrared technology and infrared optical technology, it uses a 640 × 512 uncooled FPA sensor and advanced digital circuit and image processing technology to deliver clear thermal images. The camera adopts an AS optical lens design to achieve long-range target detection while reducing overall size and weight. Its sealed aluminum alloy housing with nitrogen filling and IP66 protection ensures stable outdoor operation in demanding environments.

Get Free Quote

Product Introduction

The MR-TC6105 is an uncooled long-range thermal camera developed for outdoor surveillance tasks that require stable imaging and continuous operation in day and night conditions. It integrates a high-sensitivity infrared sensor, advanced digital image processing, and weatherproof structural design into one compact monitoring unit. According to the source page, it is suitable for applications such as city safety, oilfield security, railway protection, and night evidence collection.

Application scenarios

Night Monitoring
Urban Transportation Monitoring
Key-Object Monitoring
Oil Depot Security Monitoring

Product Features and Technical Specifications

24/7 Thermal Monitoring
Supports continuous day-and-night thermal observation for outdoor security applications.

Enhanced Imaging in Harsh Weather
NETD 50mK helps improve image detail in foggy, rainy, and snowy environments.

AS Optical Zoom Lens Design
Special AS optical zooming lens and high-precision optomechanical design help deliver stable image quality.

Compact Fifth-Generation Sensor Architecture
The fifth-generation thermal sensor reduces system size while maintaining imaging quality.

Stable Image Uniformity
Non-uniform image correction technology supports stable operation without TEC and improves image uniformity and dynamic range.

Digital Image Processing
SDE digital image processing reduces image noise and supports 10 pseudo-color modes as well as black/white and black/white inverse display.

Outdoor-Ready Protection
Nitrogen-filled aluminum alloy housing with IP66 weatherproof protection supports stable outdoor deployment.

Optional PTZ Integration
Optional PTZ supports 10 kg load, pan/tilt movement, preset positions, and variable-speed configuration for wider monitoring coverage.

Technical Parameters

Parameter	Specification	Parameter	Specification
Model	MR-TC6105	Sensor Type	5th generation UFPA sensor
Resolution	640 × 512, 9Hz	Spectral Range	7.5–14 μm
NETD	50mK	Focal Length	50mm F1.0
Vehicle Detection	4200 m	Human Detection	1640 m
Vehicle Identification	1200 m	Human Identification	470 m
Field of View (Horizontal)	6.5° × 4.8°	Digital Processing	SDE, AGC, 10 pseudo colors, B/W, B/W inverse, 2× digital amplification
PTZ Load (Optional)	10 kg	Pan Range	0°–355°
Tilt Range	-60° to +10°	PTZ Speed	Pan: 7°/s, Tilt: 3.4°/s
Preset Positions	32	Communication	RS-485 (PELCO D, 2400bps), optional RS-232
Video Output	PAL / NTSC	Power Supply	AC24V / DC12V
Connector	Waterproof aviation connector	Operating Temperature	-35°C to +55°C (optional -45°C)
Power Consumption	Normal 8W, Peak 36W (PTZ excluded)	Protection Rating	IP66
