MR-RDV05K Low-Altitude Surveillance Radar

Mr Rdv05k Illustration
Mr Rdv05k Illustration
Low-Altitude Surveillance Radar

Specification for MR-RDV05K Low-Altitude Surveillance Radar

Product Description:

The MR-RDV05K Low-Altitude Surveillance Radar is a Ku-band moving-target surveillance radar designed for continuous, all-weather detection and tracking of low-altitude moving targets. The radar adopts mechanical azimuth scanning combined with elevation digital beam forming (DBF), providing full 360° azimuth coverage and an elevation field of view from −5° to 60°. With an instrumented range of 5 km, the MR-RDV05K can detect small rotary-wing UAVs with an RCS of 0.01 m² at distances of 3 km or more, while medium targets with an RCS of 1 m² can be detected at distances of 5 km or more. The radar supports simultaneous tracking of at least 200 targets and provides accurate target range, velocity, azimuth and elevation information for low-altitude surveillance applications.

Get Free Quote

Product Introduction

The MR-RDV05K is a three-dimensional low-altitude moving-target surveillance radar based on mechanical azimuth scanning and elevation digital beam forming technology.

Mechanical azimuth scanning provides continuous 360° horizontal coverage, while elevation DBF enables accurate height measurement and an elevation coverage range from −5° to 60°.

Advanced signal processing and tracking algorithms provide reliable measurements of target range, velocity, azimuth and elevation while maintaining stable detection performance in complex clutter environments.

The radar offers a maximum instrumented range of 5 km, a maximum detection altitude of 600 m, and simultaneous tracking capacity of at least 200 targets.

With selectable antenna rotation speeds and configurable target update rates, the system can support different surveillance requirements while maintaining reliable multi-target tracking performance.

Application scenarios

  • Mr Rdv05k Illustration

    Small UAV Detection

  • Mr Rdv05k Illustration

    Radar–EO Coordinated Maritime UAV Tracking

  • Mr Rdv05k Illustration

    Surface and Maritime Target Surveillance

  • Mr Rdv05k Illustration

    Airport Bird Detection

  • Mr Rdv05k Illustration

    Vehicle-Mounted Deployment

  • Mr Rdv05k Illustration

    Integrated Counter-UAV System

Product features and technical means

Large-Capacity Wide-Area Detection

Mechanical azimuth scanning combined with elevation DBF provides continuous 360° surveillance and enables real-time detection and tracking of multiple moving targets.

High Detection Accuracy

Advanced signal processing algorithms and system hardware architecture provide accurate measurement of target range, velocity, azimuth and elevation.

High Refresh Rate and Precise Tracking

Selectable antenna rotation speeds and advanced tracking algorithms provide stable tracking performance for moving and maneuvering targets.

High Detection Sensitivity and Low False Alarm Rate

Advanced clutter suppression technology enables reliable extraction of weak moving-target signals in complex ground and weather clutter environments.

Strong Clutter Suppression

High clutter visibility enables stable detection and tracking of low-altitude targets in complex urban and terrain environments.

Low Electromagnetic Signature

The continuous-wave operating architecture uses relatively low transmission power, reducing the risk of electromagnetic interception compared with conventional pulse radar systems.

Easy Operation and Rapid Deployment

The lightweight modular architecture and intelligent human-machine interface support quick installation, operation and relocation.

Technical parameters





Low-Altitude Surveillance Radar



Parameter Specification
Model MR-RDV05K
Operating Band Ku-Band
Radar Architecture Mechanical Azimuth Scanning + Elevation DBF
Instrumented Range 50 m – 5 km
Maximum Detection Altitude 600 m
Azimuth Coverage 360°
Elevation Coverage −5° to 60°
Radial Velocity Range 1–150 m/s
Small UAV Detection Range ≥3 km, RCS = 0.01 m²
Medium UAV Detection Range ≥5 km, RCS = 1 m²
Range Accuracy ≤5 m RMS
Velocity Accuracy ≤0.5 m/s RMS
Azimuth Accuracy ≤0.4° RMS
Elevation Accuracy ≤0.4° RMS
Target Update Rate 2 s standard; 1 s / 3 s optional
Antenna Rotation Speed 30 RPM standard; 20 / 60 RPM optional
Simultaneous Tracking Capacity ≥200 targets
Operating Temperature −40°C to +55°C
Protection Rating IP66; Radar Host IP67
Power Supply DC 36–52 V, with AC220V-to-DC48V adapter
Power Consumption ≤200 W*
Communication Interface Gigabit Ethernet aviation connector
Radar Host Dimensions ≤455 × 470 × 90 mm
Radar + Turntable Weight ≤27 kg

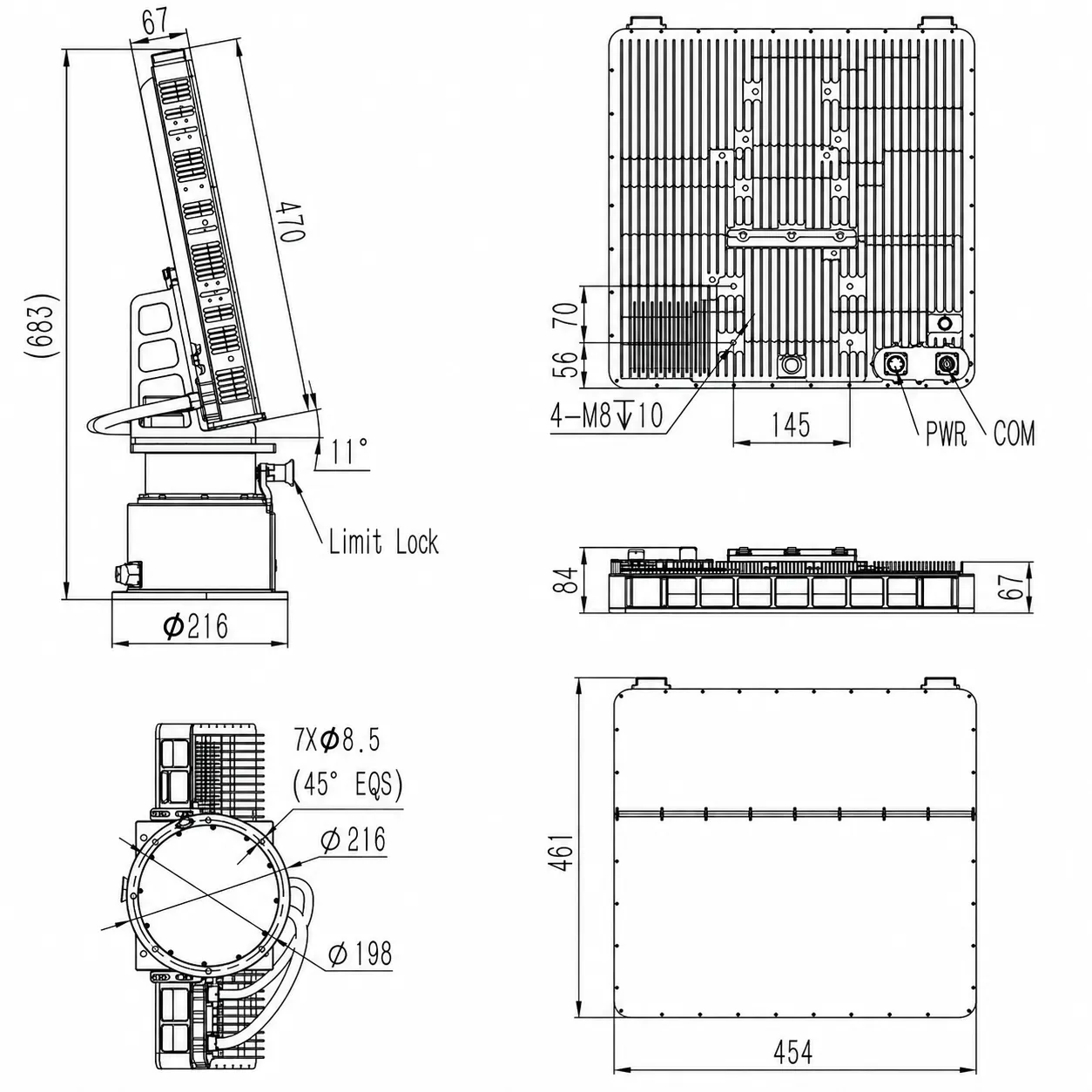

Dimensions and Weight

Component Dimensions Net Weight Packed Dimensions Gross Weight
Radar Main Unit ≤456 × 465 × 87 mm ≤12 kg ≤540 × 550 × 190 mm ≤19 kg
Radar Turntable ≤415 × Ø225 mm ≤15 kg ≤380 × 390 × 510 mm ≤28 kg
Tripod ≤980 × 230 × 230 mm ≤12 kg ≤1100 × 250 × 250 mm ≤16 kg



Product List

No. Item Quantity Unit Description
1 Radar Main Unit 1 Unit —
2 Radar Turntable 1 Unit —
3 Tripod 1 Unit —
4 Radar Main Unit Transport Case 1 Case Aluminum alloy transport case
5 Turntable Transport Case 1 Case Aluminum alloy transport case
6 Power Adapter Cable 1 Piece AC 220 V to DC 48 V, 15 m in length
7 Communication Cable 1 Piece Connects the radar to the display and control terminal, 15 m in length
8 Assembly Tools and Fasteners 1 Set Used to assemble the radar main unit, turntable, and tripod
9 Accompanying Documentation 1 Set User manual and other documents in electronic format



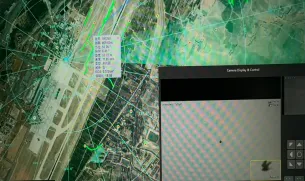

Application effects

  • Product Details7 Illustration
  • Product Details6 Illustration
