Specification for MR-RD02SE-DMS15-AU Radar-EO Detection System

Product Description:

The MR-RD02SE-DMS15-AU Radar-EO Detection System integrates a side-mounted servo system, electro-optical unit, and radar detection system. Through unified scheduling by the RGS2000 low-altitude target prevention, control and identification platform, the system enables 360° radar and electro-optical detection. The system supports 2 km search and tracking for low-altitude targets through coordinated radar and electro-optical operation. Radar and EO devices are centrally managed by the platform to support target locking, identification, and monitoring.

Get Free Quote

Product Introduction

The MR-RD02SE-DMS15-AU is a lightweight Radar-EO integrated low-altitude detection system designed for coordinated target search, tracking, and identification.

It combines radar detection, visible-light imaging, infrared thermal imaging, AI target recognition, servo pan-tilt tracking, and RGS2000 platform control.

The system supports radar-electro-optical linkage, target track display, video recording and playback, electronic map display, multi-screen monitoring, auxiliary measurement tools, and unattended multi-target monitoring.

Application scenarios

Airport Low-Altitude Security
Border and Coastal Monitoring

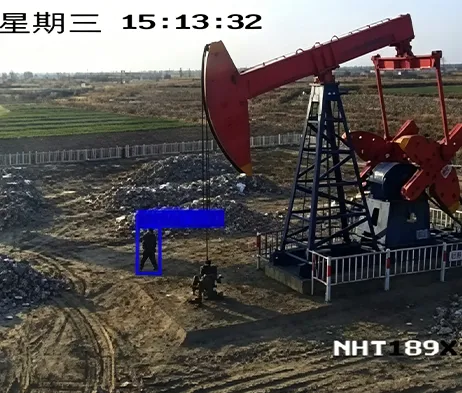

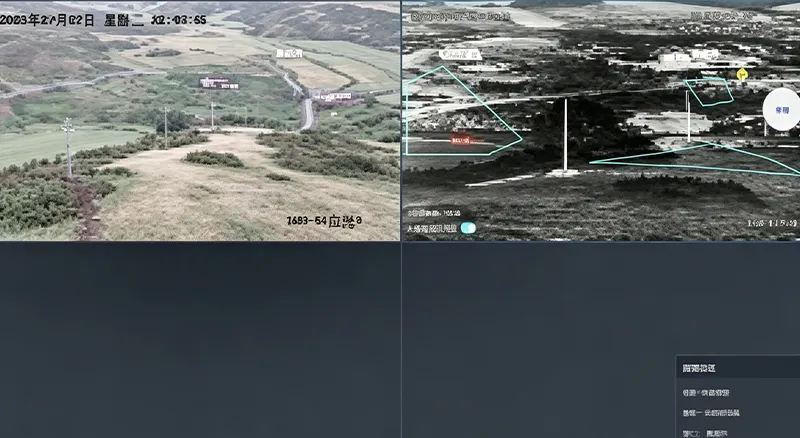

Oil Field Security

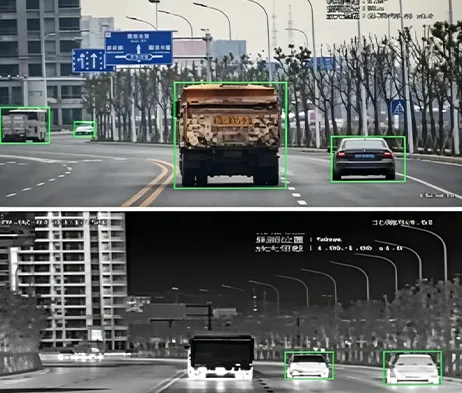

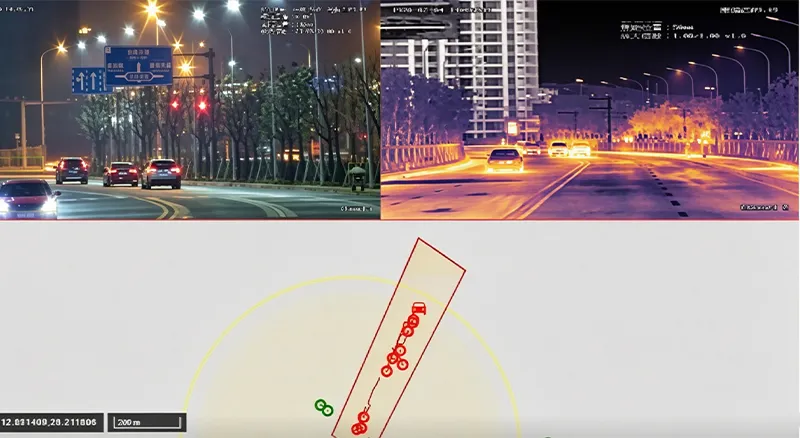

Road safety monitoring

Product Features and Technical Specifications

Highly Integrated Radar-EO Architecture
The system integrates radar detection and electro-optical tracking, supporting independent operation and coordinated linkage.

Easy Installation and Operation
Designed for simple installation, wide application, ready-to-use operation, and simplified calibration and debugging.

High Detection Data Rate and Strong Tracking Capability
Supports tracking of multiple targets across a wide radial velocity range.

Strong Target Resolution and Low False Alarm Rate
Adaptive clutter suppression helps reduce false alarms while maintaining stable tracking accuracy.

Wide EO Coverage and Fast Response
The electro-optical system provides wide coverage, fast rotation, quick start-stop response, and target capture capability.

High-Precision Servo Control
The servo system supports high-precision positioning and stable tracking.

Intelligent Video Analysis
The embedded intelligent video analysis module supports target classification and recognition, unattended alert-area mode, and unattended guided mode.

Technical Parameters

Parameter	Specification	Parameter	Specification
Model & Working Range
Model Name	MR-RD02SE-DMS15-AU Radar-EO Low-Altitude Detection System	Typical Target	0.3 m × 0.3 m UAV target, typical target: DJI Phantom 4
Radar Detection Range	≥1500 m	Visible-Light Tracking Range	≥1500 m
Thermal Imaging Tracking Range	≥800 m
Radar Detection
Operating Frequency	Ku-band	Technology	Mechanical azimuth scanning, elevation DBF
Azimuth Coverage	360°	Elevation Coverage	0° ~ 40°
Target Refresh Rate	2 s	Measurement Accuracy	Azimuth ≤0.4° RMS, Elevation ≤0.4° RMS, Range ≤10 m RMS
Blind Zone	≤100 m	Antenna Rotation Speed	30 RPM (180°/s)
Simultaneous Tracking Capacity	≥100 tracks	Radial Velocity Detection Range	1 ~ 100 m/s
Power Supply	DC48V	Weight	≤48 kg
HD Visible-Light Camera
Sensor	Starlight CMOS, ICR day/night switching	Resolution	1920 × 1080
Lens	11 ~ 270 mm HD motorized zoom lens	Video Encoding	H.264 / H.265
Image Enhancement	Wide dynamic range, highlight suppression, 3D digital noise reduction, automatic white balance, etc.	Defog	Optical / electronic dual defog supported
Infrared Thermal Imaging
Detector	Uncooled VOx infrared focal plane array	Resolution	640 × 512
Lens	25 ~ 75 mm, 3× optical zoom lens	NETD	≤40 mK
Video Encoding	H.264 / H.265	Lens Control	Manual / automatic focus
Servo Pan-Tilt
Rotation Range	Horizontal N × 360°, pitch -90° ~ +90°, supports software limit	Rotation Speed	Horizontal 0.01° ~ 100°/s, Pitch 0.01° ~ 80°/s
Acceleration	Horizontal 120°/s², Pitch 100°/s²	Positioning Accuracy	Better than 0.01°
Zero Position Setting	Supports horizontal and pitch zero position setting	Preset Positions	≥2048
Drive Method	Torque motor direct drive, high-speed start-stop
AI Tracking
Implementation	Front-end embedded hardware recognition and tracking	Tracking Mode	Manual tracking, automatic tracking, radar linkage supported
Recognition	Supports classification of people, vehicles, vessels, UAVs and other targets	Dataset Requirement	Customer assistance required for dataset provision
Other Module Information
Power Supply	DC48V	Weight	≤12 kg
Overall System
Interface	Ethernet port	Power Supply	AC220V ±20%, 50Hz or DC48V
Power Consumption	Peak ≤600 W, average ≤300 W	Weight	≤60 kg, excluding power box
Dimensions	≤L455 mm × W370 mm × H880 mm	Protection Rating	IP66
Operating Temperature	-40℃ ~ +60℃
RGS2000 Low-Altitude Target Prevention, Control and Identification System
Integrated Control & Display	Platform-based centralized control and display of radar and electro-optical systems	Situation Display	Dynamic display of UAV target points and track information; supports radar target tracks and synchronized video recording playback
Auxiliary Tools	Supports distance, area and angle measurement; static calibration azimuth calculation; radar-EO assisted calibration	Electronic Map	Supports electronic maps and radar-EO coordinate locations; online and offline 2D maps
Multi-Screen Display	Supports split-screen display of video preview, electronic map, video monitoring, video playback and information management	Unattended Operation	Supports radar track data fusion, automatic radar-EO linkage and unattended multi-target operation
