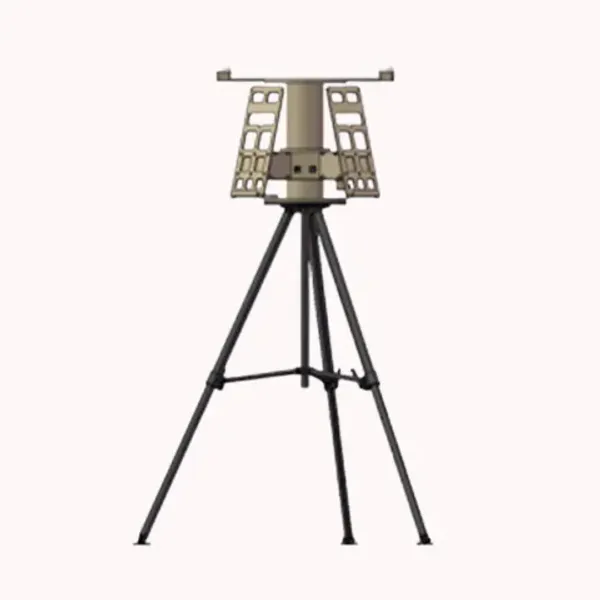

Specification for MR-RDA10K-4R Low-Altitude Surveillance Radar

Product Description:

The MR-RDA10K-4R low-altitude surveillance radar is a two-dimensional active phased array three-coordinate radar. Utilizing an active phased array (AESA) system combined with monopulse angle measurement technology, it can accurately detect and track low-flying targets such as aircraft, drones, birds, and loitering munitions, providing detailed information such as distance, speed, azimuth, altitude, and type. It features boundary crossing alarm, warning, and recording functions. It is characterized by high sensitivity, low false alarm rate, and high accuracy, and can also achieve multi-target tracking in dense environments.

Get Free Quote

Product Introduction

The MR-RDA10K-4R is a low-altitude surveillance radar based on a two-dimensional active phased array three-coordinate radar system. It adopts AESA technology together with monopulse angle measurement technology to detect and track low-flying targets.

The radar can provide target information including distance, speed, azimuth, altitude, and type, while also supporting boundary crossing alarm, warning, and recording functions. It is suitable for multi-target tracking in dense environments.

Application scenarios

Radar Detecting Small UAVs
Radar and Camera Coordinated Detection of Sea Surface UAV
Radar Detecting Sea Surface UAVs
Radar Detection of Multi-Target Small UAVs

Product features and technical means

Two-Dimensional Active Phased Array Three-Coordinate Radar
The radar adopts a two-dimensional phased array three-coordinate radar system.

AESA + Monopulse Angle Measurement Technology
It utilizes an active phased array (AESA) system combined with monopulse angle measurement technology.

Low-Flying Target Detection and Tracking
It can accurately detect and track aircraft, drones, birds, and loitering munitions.

Detailed Target Information Output
It provides target information such as distance, speed, azimuth, altitude, and type.

Boundary Crossing Alarm, Warning, and Recording Functions
The radar features boundary crossing alarm, warning, and recording functions.

High Sensitivity, Low False Alarm Rate, and High Accuracy
It is characterized by high sensitivity, low false alarm rate, and high accuracy, and can achieve multi-target tracking in dense environments.

Technical parameters

Parameter	Specification
Radar Band	X-band
Technology System	Two-dimensional phased array three-coordinate radar
Detection Range – Drones (DJI Phantom 4, RCS 0.01 m²)	≥ 10 km, clear weather
Detection Range – People	≥ 12 km
Detection Range – Vehicles / Ships	≥ 15 km
Coverage – Single-sided Array Azimuth	90°
Coverage – Four-sided Array Azimuth	360°
Coverage – Elevation	0°～40°
Number of Targets Simultaneously Tracked by TWS	≥500
Number of Targets Simultaneously Tracked by TAS	≥2 (single-sided array)
TWS Data Rate	2.5s
TAS Data Rate	4Hz (single-sided array with 2 targets)
Accuracy – Azimuth / Elevation	≤0.5°
Accuracy – Distance	≤10 meters (RMS)
Close-range Blind Zone	≤200m
Velocity Detection	1~150m/s
Transmit Power	300W (single-sided array); 1200W (quadruple-sided array)
Power Consumption	≤850W (single-sided array); 3600W (quadruple-sided array)
Weight	≤30kg (single-sided array); ≤140kg (quadruple-sided array including bracket)
Protection Rating	IP66
Operating Temperature	-40～55℃
