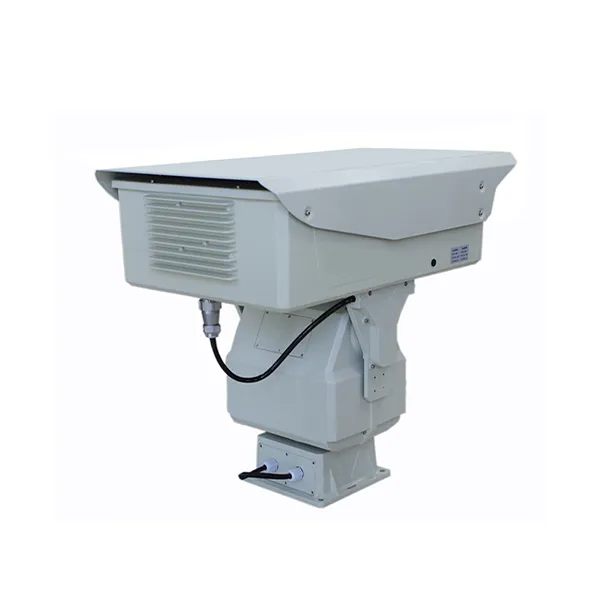

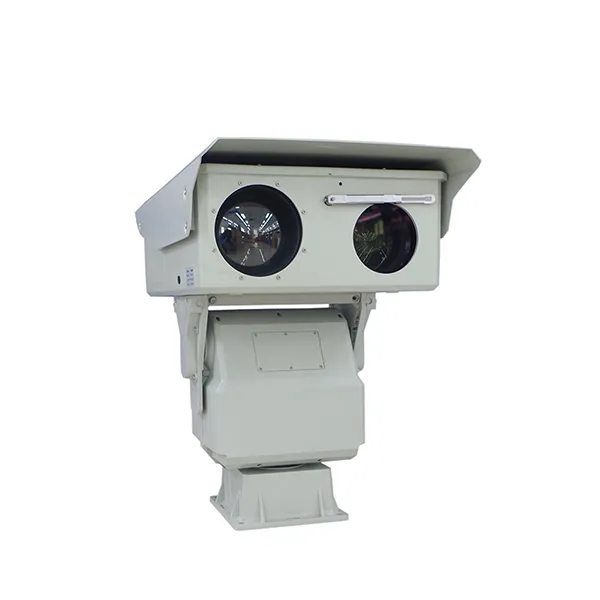

The TRC Tri-Band Camera integrates visible light, near infrared, and long-wave infrared detection into one unit. It is an optoelectronic product specially customized for special application scenarios, and is suitable for long-distance observation under various weather conditions such as complete darkness, fog, and rain. In daytime, it uses 122mm, 300mm, 500mm, and 1000mm long-focus visible-light lenses, matched with 440,000-pixel, 1.3-megapixel, and 2-megapixel high-definition CCD cameras. At night, it uses fixed-focus or optical zoom infrared thermal imaging, with 320×240 / 640×480 resolution, high sensitivity, large aperture, and uncooled thermal imaging cameras.
Obtenez un devis gratuitThe MR-TRC Tri-Band Camera is designed for long-distance day-and-night, all-weather video monitoring.
By integrating visible light, near infrared laser illumination, and long-wave infrared thermal imaging into one system, it supports long-distance observation in complete darkness, fog, rain, and other complex environments.
The system can realize day-and-night, all-weather video monitoring from 2 km to 10 km or above, and can be equipped with a 1–3 km near-infrared laser illuminator and a 360-degree all-direction pan-tilt with 20 kg or 50 kg load-bearing capacity.
Tri-Band Integrated Detection
Integrates visible light, near infrared, and long-wave infrared detection into one unit.
All-Weather Long-Distance Observation
Suitable for long-distance observation under complete darkness, fog, rain, and other weather conditions.
Visible-Light Long-Focus Observation
Supports 122mm, 300mm, 500mm, and 1000mm long-focus visible-light lenses matched with high-definition CCD cameras.

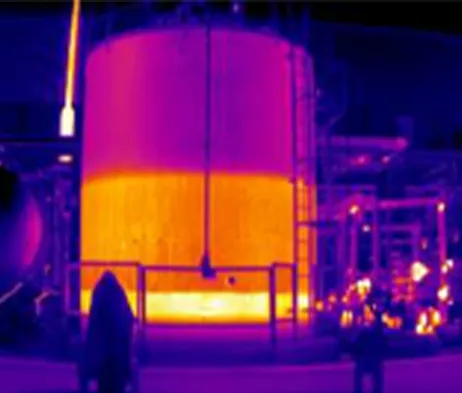

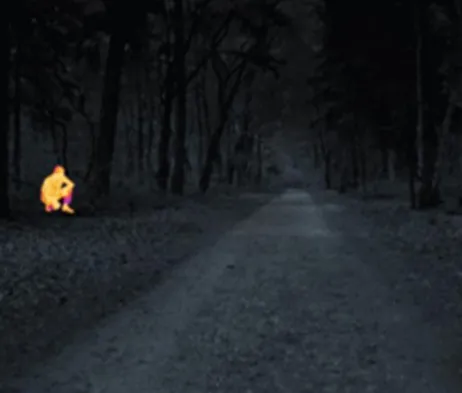

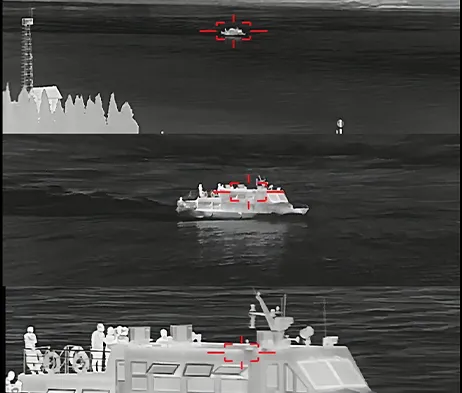

Infrared Thermal Imaging for Night Use
Uses fixed-focus or optical zoom infrared thermal imaging with 320×240 / 640×480 resolution, high sensitivity, large aperture, and uncooled thermal imaging cameras.
Near-Infrared Laser Illumination
Supports 1–3 km near-infrared laser illuminator.
All-Direction Pan-Tilt Monitoring
Supports 360-degree all-direction pan-tilt for long-distance day-and-night video monitoring.
| Modèle | MR-TRC6511-2132-TG |
| Detection | Vehicle: 8.6km,Human:3.4km |
| Identification | Vehicle:2.4km, Human: 900m |
| Thermal Camera System | |
| Sensor | 5th generation FPA VOx uncooled detector |
| Resolution | 640*512 (optional 384*288) |
| Spectral range | 7.5～14μm |
| NETD | 50mK (@25℃ F1.0) |
| Focal length | 21mm~105mm, 5X continuous zoom, auto focus |
| FOV | 30°* 23°~6.2°*4.6° |
| Image process | 1. Image enhancement: SDE digital image enhancement technology to enhance image details |
| 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities | |
| 3. Image parameters: AGC automatic gain control, brightness, contrast | |
| 4. Electronic zoom: 2×, 4×, support global synchronous display | |
| Lens Control | 1.Zoom: Electrical Zoom. 2.Focus: Manual/Auto Focus |
| 3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, | |
| smaller axis. | |
| Visible Camera System | |
| Camera | 1/2.8” star level CMOS, 0.05lux/0.01lux color to B/W CCD |
| 2 MP ,1920X1080 | |
| Automatic ICR switch | |
| H.264/H.265 MPEG4/MIPEG | |
| 32Kbps~16Mbps,60Hz30 FPS | |
| Visible lens | 8mm～320mm, 2MP resolution, 40X zoom, auto focus |
| Illumination laser | |
| Consumption | 10W, 808nm MIL NIR |
| Illumination Angle | 1°~20° |
| Synchronization control | DSS digital stepping illumination angle control technology, 0.1 degree precise servo control |
| Housing | |
| Material | High strength aluminum alloy shell，waterproof seal，To avoid the growth of mold and moisture generated |
| Surface coating | PTA three-resistance coating, Seawater corrosion resistance |
| Temp. Control | Built-in thermostat, design of thermal equilibrium |
| Interface | Aviation waterproof plug |
| PTZ | |
| Load Capacity | 30kg |
| Range/Speed | Range：Pan: 0~360°, Tilt: +45°～-45°; Speed: Pan: 0.01～60°/S, Tilt: 0.01～30°/S |
| Preset | 255 |
| Scan | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising. |
| Interface | |
| Network Interface | RJ45 |
| Network Protocol | Support TCP/IP, UDP, IPv4/v6; Support HTTP,RTP,RTSP,NFS,HDCP,NTP,SMTP,,PPPoE,DNS, FTP, Onvif |
| Power Supply | AC/DC24V, anti-reverse connection protection |
| Environment Parameter | |
| Working/Storage Temp. | Working temperature: -25℃~+60℃（-40℃for optional）; Storage temperature: -45℃~70℃ |
| Seismic/Impact Resistance | 0.2g/15g |
| Anti-lighting | Built-in auto Fuse-protected device, Power 4000V，Signal 2000V |
| Ingress Protection | IP 66 |
