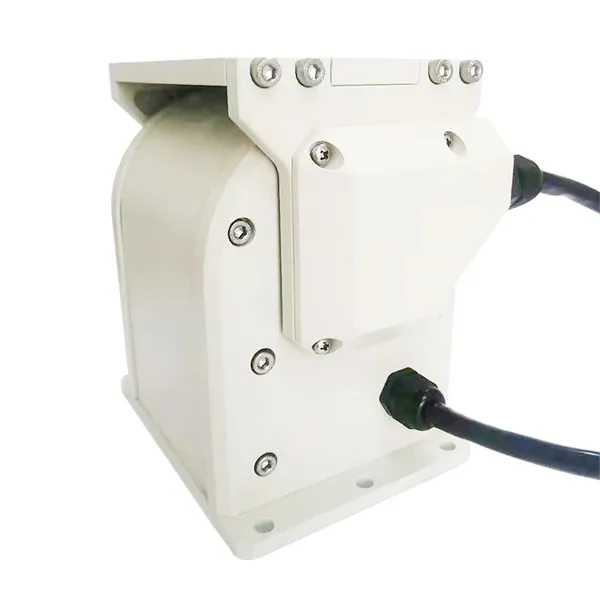

20kg 1-Axis Single-Tilt Gimbal

Inicio > Productos > 20kg 1-Axis Single-Tilt Gimbal
20kg 1-Axis Single-Tilt Gimbal1
20kg 1-Axis Single-Tilt Gimbal
20kg 1-Axis Single-Tilt Gimbal1
20kg 1-Axis Single-Tilt Gimbal
Unidad panorámica de un eje

20kg 1-Axis Single-Tilt Gimbal

Descripción del producto:

The YZ-BY020W-F is a 20kg 1-axis single-tilt gimbal designed for stable tilt movement and reliable payload support. It features a positioning accuracy of ±0.1°, a tilt speed range of 0.01°/s to 10°/s, and a tilt angle range of -60° to +20°. With a worm gear drive structure, IP66 protection, and support for fixed, vehicle-mounted, suspended, and shipborne applications, this gimbal is suitable for a wide range of monitoring, control, and integrated system projects.

Obtener presupuesto gratuito

Presentación del producto

The standard model YZ-BY020W-F is a 20kg single-axis single-tilt gimbal with a compact structure and stable operation. It adopts a worm gear drive mode and provides self-locking performance for reliable tilt control. The gimbal supports a maximum payload of 20kg, with a positioning accuracy of ±0.1°, a tilt angle range of -60° to +20°, and a tilt speed range of 0.01°/s to 10°/s.

It is suitable for fixed installation and can also be configured for vehicle-mounted, suspended, and shipborne applications. Different communication protocols, interfaces, power supply options, and output cable configurations can be selected according to project requirements.

Escenarios de aplicación

  • Highway Monitoring

    Highway Monitoring

  • Acoustic Deterrence Systems

    Acoustic Deterrence Systems

  • Border Surveillance

  • Building Surveillance

    Perimeter Intrusion Detection

Product Features and Technical Specifications

Custom Colors: Army Green, Black, White, or customized colors

Extended Tilt Angle: Customizable within -90° to +90°

Higher Speed Option: 15°/s to 30°/s available

Preset Expansion: Up to 1000 preset positions

Communication Protocols: PELCO-P, ModBus-RTU, or customized protocols

Communication Interfaces: RS485, RS232, or network port

Power Supply Option: DC48V

Closed-loop Version: Absolute encoder or incremental encoder optional

Auxiliary Switches: 1–2 dry contact channels optional

Special Installation Adaptation: Vehicle-mounted, suspended, marine environments

Customized Output Interfaces: USB3.0, Gigabit Ethernet, RF, optical fiber, and more

Technical Parameters

Item Standard Configuration Optional
Model YZ-BY020W-F —
Color Ice Gray Army Green, Black, White, customizable
Rotation Angle Tilt: -60° to +20° limited angle rotation Tilt: within -90° to +90° limited angle rotation, the larger the angle the smaller the maximum load
Rotation Speed Tilt: 0.01°/s to 10°/s Tilt: high speed 15°/s to 30°/s optional, the faster the speed the smaller the maximum load
Preset Position 200 1000
Positioning Accuracy ±0.1° None
Upper Power Output Top outlet No power supply (absolute value encoder version / no-slip-ring version)
Angle Feedback Query feedback / real-time feedback Note: RS485 interface does not support real-time angle feedback
Auxiliary Switch None 1–2 sets, passive, normally open (commonly used for turntable power-on, signal, control and other linkage output)
Automatic Cruise 2 lines, 40 points can be set for each line None
Automatic Home Return Can set 1–60 minutes automatic home return None
Automatic Scan 1 line None
Salt Spray None Under PH6.5–7.2, continuous salt spray for 48 hours, no obvious change on the surface
Communication Protocol PELCO_D PELCO_P, ModBus-RTU, custom protocol
Baud Rate 9600bps 2400 / 4800 / 115200bps
Communication Interface RS422 RS485 / RS232 / network interface
Power Supply Voltage DC24V DC48V
Power Consumption ≤35W Note: depends on the selected functional configuration
Static Power Consumption ≤2W Note: depends on the selected functional configuration
Working Temperature -25°C to +65°C, no condensation -40°C to +65°C, no condensation
Storage Temperature -40°C to +65°C None
Load 20kg Note: when the load center is 5cm directly above the plate, the faster the speed, the larger the angle, and the higher the center of gravity, the smaller the maximum load

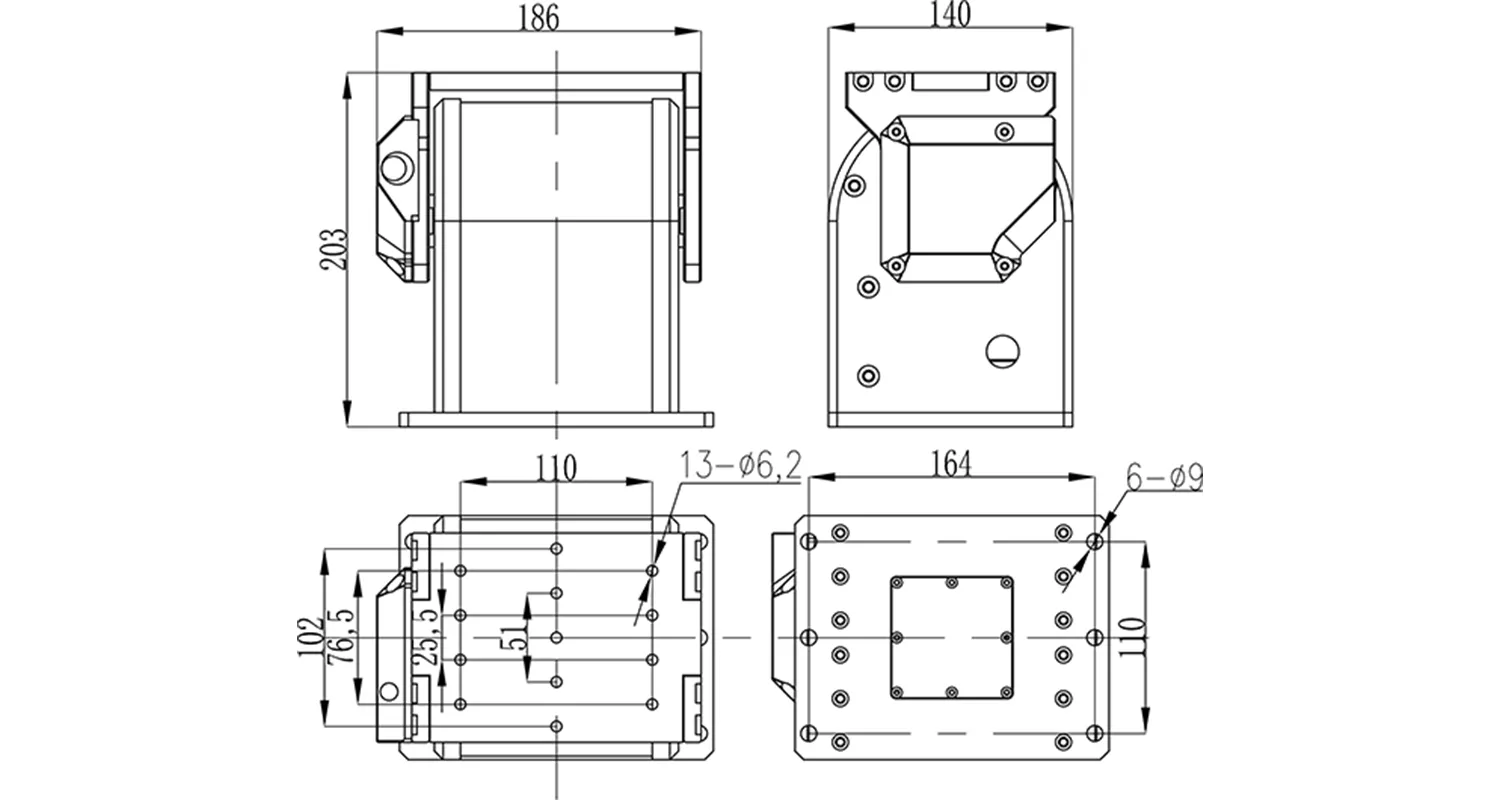

Size 186 × 140 × 203 (L × W × H mm) Special appearance
Self Weight 6.1kg Note: depends on the selected functional configuration
Load Mounting Method Top installation Inverted
Self-Locking Performance Self-locking None
Protection Grade IP66 None
Installation Environment Fixed installation Vehicle / suspended / shipborne
System Type Open-loop system (without encoder) Closed-loop system (absolute encoder / incremental encoder)
Upper Output Cable One standard load signal cable (4-core) + one DC24V output power cable (2A) Standard power / standard signal / high-power power supply / USB3.0 / thousand-megabit network / RF (0~3G / 3G~18G) / optical fiber / other
Lower Output Cable One standard load signal cable (4-core) + one DC24V input power cable (system power supply) + one RS422 (gimbal communication) Standard power / standard signal / high-power power supply / USB3.0 / thousand-megabit network / RF (0~3G / 3G~18G) / optical fiber / other



20kg 1-Axis Single-Tilt Gimbal2
