The MR-RDT02K low-altitude surveillance radar is a three-dimensional radar system capable of integrated air, ground, and water surface detection. It enables continuous detection and tracking of drones, aircraft, birds, personnel, vehicles, and vessels within its coverage area. By utilizing simultaneous multi-beam technology and advanced signal processing techniques, the radar can rapidly and accurately acquire target position and motion states even in complex multi-target environments. With a continuous wave operation mode and low transmission power, the MR-T02 radar significantly enhances resistance to electromagnetic interception and improves concealment performance compared to traditional pulse radar systems. Within integrated systems, the radar serves as a core sensing unit, providing high-precision data to other sensors such as electro-optical devices and bird dispersal systems for coordinated detection and response.
احصل على عرض أسعار مجانيThe MR-RDT02K low-altitude surveillance radar is designed for multi-domain target detection, integrating airspace monitoring, ground surveillance, and water surface detection capabilities into a single system.
It supports real-time tracking of various targets including drones, aircraft, birds, vehicles, personnel, and vessels, ensuring reliable performance in complex operational environments.
The radar adopts mechanical azimuth scanning combined with elevation digital beam forming (DBF) technology, enabling wide-area coverage and multi-target tracking.
With high-performance signal processing and advanced tracking algorithms, the system delivers precise detection results and stable tracking performance even under dense multi-target and cluttered conditions.
High Detection Accuracy
Based on advanced signal processing algorithms and system architecture, the radar provides precise measurement of distance, speed, azimuth, and altitude for reliable target tracking and decision-making.
Large-Capacity Wide-Area Detection
Utilizing mechanical azimuth scanning and elevation DBF technology, the radar achieves 360° coverage and supports real-time detection and tracking of multiple targets in large-area environments.
High Refresh Rate and Precise Tracking
With high refresh rate capability and advanced tracking algorithms, the radar ensures accurate tracking of high-speed and highly maneuverable targets.
High Sensitivity and Low False Alarm Rate
Advanced clutter suppression technology enables detection of weak targets in complex electromagnetic environments while maintaining a low false alarm probability.
Excellent Anti-Electromagnetic Interception Performance
Continuous wave operation with low transmission power significantly reduces interception risk and enhances anti-interference capability and concealment performance.
Simple Operation and Portability
The radar features an intelligent human-machine interface and lightweight modular design, supporting quick deployment and high mobility operations.
| معلمة | المواصفات |
| Operating Band | Ku-band |
| التكنولوجيا | Mechanical Azimuth Scan + Elevation DBF |
| Detection Range | 3.5 km |
| Maximum Detection Altitude | 600 m |
| Blind Zone | 50 m |
| Azimuth Coverage | 360° |
| Elevation Coverage | -5° ~ 60° |
| Velocity Measurement Range | 1–100 m/s |
| Small UAV Detection | ≥1.5 km (RCS=0.01m²) |
| Medium UAV Detection | ≥3.5 km (RCS=1m²) |
| Vehicle / Helicopter Detection | ≥3.5 km (RCS=5m²) |
| Range Accuracy | ≤5 m |
| Velocity Accuracy | ≤0.5 m/s |
| Angle Accuracy | ≤0.4° (Azimuth & Elevation) |
| Refresh Rate | 1s / 2s / 3s (configurable) |
| Tracking Capacity | ≥100 targets |
| درجة حرارة التشغيل | -40℃ ~ +55℃ |
| Protection Level | IP66 (Host IP67) |
| مزود الطاقة | DC 18–28V |
| استهلاك الطاقة | ≤120W |
| التواصل | Ethernet |
| الوزن | ≤25 kg (Host + Turntable) |
| عنصر | الأبعاد (مم) | Weight (kg) | Packed Dim (mm) | Packed Wt (kg) |
| Host Unit | ≤353*453*87 | ≤9 | ≤750*560*410
(Host+Turntable) |
≤40
(Host+Turntable) |
| Turntable | ≤412*Φ216 | ≤14.2 | ||
| Tripod | ≤940*230*230 | ≤12 | ≤1140*290*290 | ≤15 |
| No | Name | Qty | Unit | الوصف |
| 1 | Radar Host Unit | 1 | Unit | |
| 2 | Radar Turntable | 1 | Unit | |
| 3 | Tripod | 1 | Unit | |
| 4 | Host+Turntable Transport Case | 1 | Unit | Aluminum Alloy Transport Case |
| 5 | Power Adapter | 1 | Cable | AC220V to DC24V, Length 15m |
| 6 | Communication Cable | 1 | Cable | Connects Radar to Display & Control Terminal, Length 15m |
| 7 | Assembly Tools & Screws | 1 | Set | For assembling Host, Turntable, Tripod |
| 9 | Document | 1 | Copy | User Manual, etc. (Electronic Version) |
مصممة للكشف الموثوق به وتتبع الأهداف على ارتفاعات منخفضة في البيئات المعقدة، وهي مثالية لمراقبة الطائرات بدون طيار، وأمن الحدود، وحماية البنية التحتية الحيوية.
مصممة للكشف بعيد المدى على ارتفاعات منخفضة وتتبع الأهداف المتعددة، وهي مثالية لمراقبة الطائرات بدون طيار، وأمن الحدود، وأنظمة المراقبة في المناطق الواسعة.
مصممة للكشف على ارتفاعات منخفضة طويلة المدى وتتبع الأهداف المتعددة ذات السعة العالية، ومناسبة للمراقبة في مناطق واسعة وأنظمة مكافحة الطائرات بدون طيار المتقدمة.

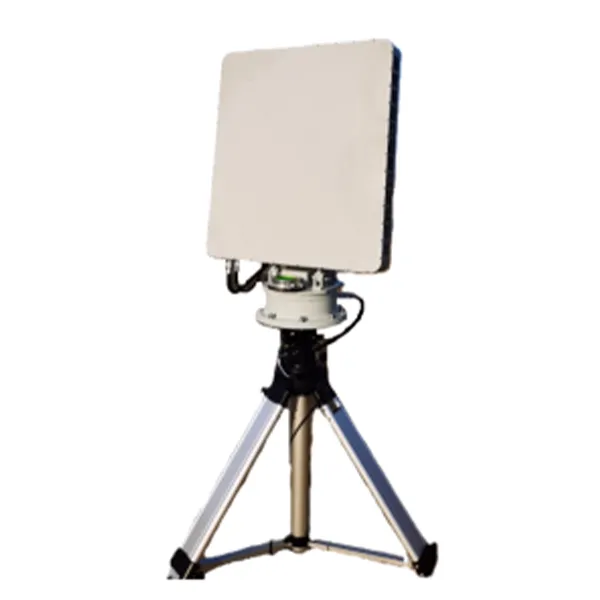

X-band moving target surveillance radar designed for low-altitude, ground, and water target detection with 360° coverage and multi-target tracking capability.
