Specification for MR-BTVC6307-2132 Vehicle-Mounted Thermal Imaging Camera

وصف المنتج:

The MR-BTVC6307-2132 long-range high-speed vehicle-mounted thermal imaging camera is designed for long-range 24-hour monitoring. Its main advantages include smooth image performance, convenient installation and application, 360° omnidirectional pan-tilt operation, super-strong aluminum alloy structure with IP66 protection, higher sensitivity, effective operation in all environments, and compact lightweight design. According to the original page, the system uses a VOx uncooled detector with 384×288 resolution and optional 640×512 resolution, NETD below 50mK (@25℃ F1.0), SDE digital image processing, AGC, 2× digital zoom, and 10 pseudo-color modes with black/white and inversion options. It also supports intelligent functions such as line crossing, intrusion detection, and target tracking, with a 255-level alarm threshold, advanced algorithms for shot point and fire detection, and an integrated aluminum alloy housing with waterproof, weatherproof, and dustproof IP66 protection.

احصل على عرض أسعار مجاني

مقدمة المنتج

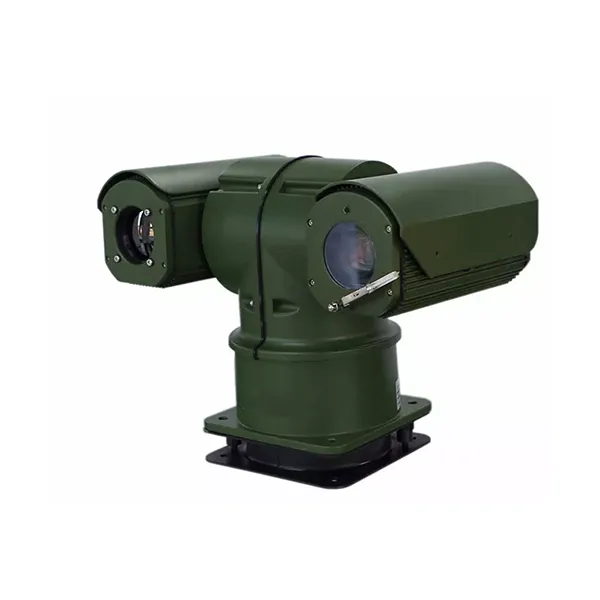

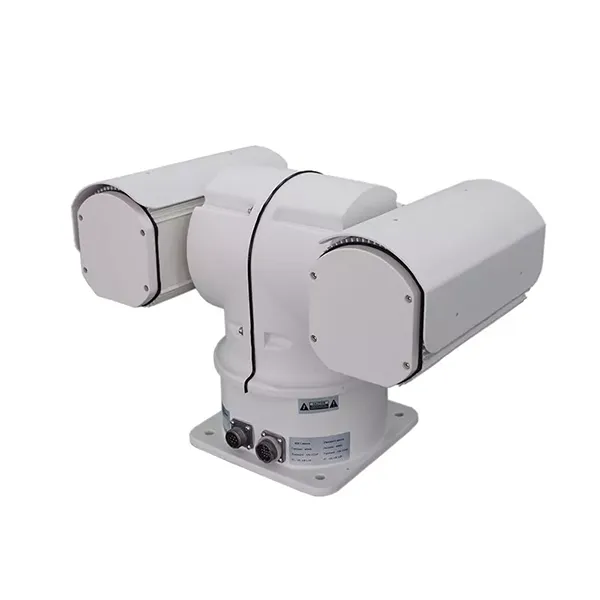

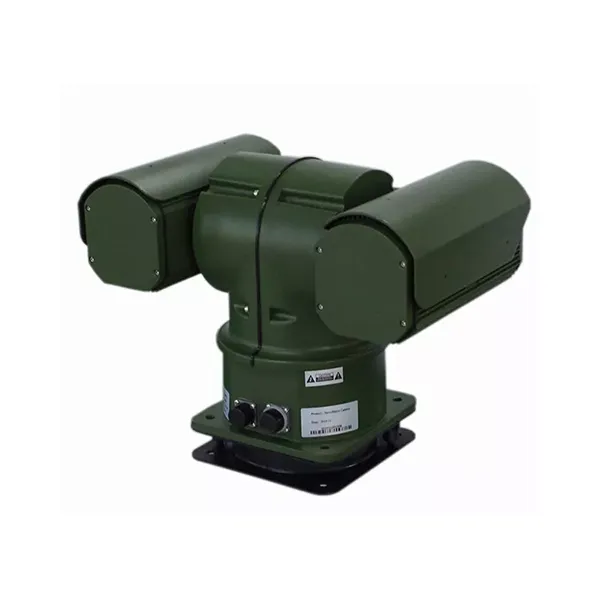

The MR-BTVC6307-2132 is a long-range high-speed vehicle-mounted thermal imaging camera developed for continuous outdoor monitoring and mobile security applications.

Based on the original product page, it integrates thermal imaging, visible-light imaging, intelligent alarm functions, and a high-speed pan-tilt system into one platform. It is suitable for wide-area outdoor monitoring tasks that require target detection, tracking, alarm response, and reliable operation in harsh environmental conditions.

سيناريوهات التطبيق

Vehicle-mounted Mobile Reconnaissance
Shipborne Surveillance
Special Vehicle Night Vision Surveillance
Coastal and Maritime Monitoring

ميزات المنتج والمواصفات الفنية

24-Hour Long-Range Monitoring
Supports continuous long-range monitoring for outdoor surveillance applications.

Smooth Image Performance
Provides delicate and smooth image output.

Convenient Installation and Application
Designed for practical deployment and field use.

360° Omnidirectional Pan-Tilt Coverage
Supports continuous 360° horizontal rotation and +90° to -90° vertical movement.

Thermal Imaging System
Uses a fifth-generation FPA VOx detector with 384×288 resolution, optional 640×512, spectral range 7.5–14 μm, NETD 50mK (@25℃ F1.0), and 25–75 mm F1.0 focal length.

Visible-Light Camera
Uses a 1/2.8″ starlight CMOS sensor with 2 MP 1920×1080 resolution, low illumination capability, and 8–320 mm 40× zoom motorized focus lens.

Intelligent Alarm Functions
Supports line crossing / intrusion detection, target tracking, a 255-level alarm threshold, and advanced algorithms for shot point and fire detection.

High-Speed PT System
Rotation speed reaches horizontal 0.01–100°/s and pitch 0.01–60°/s, with adaptive lens focus speed and 0.1° accuracy.

Network and Protocol Support
Supports RJ45 adaptive interface and protocols including TCP/IP, UDP, IPv4/v6, HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMP, UPNP, PPPoE, DNS, FTP, PSIA, ONVIF 2.0, and GB28181.

Rugged Outdoor Design
Integrated aluminum alloy housing with waterproof, weatherproof, and dustproof protection up to IP66.

المعلمات الفنية

معلمة	المواصفات	معلمة	المواصفات
نموذج	MR-BTVC6307-2132	Vehicle Detection	6,500 m
Human Detection	2,500 m	Vehicle Recognition	1,800 m
Human Recognition	700 m	Thermal Detector	5th-generation FPA VOx detector
Thermal Resolution	384 × 288 pixels (optional 640 × 512)	Spectral Range	7.5–14 μm
NETD	50mK (@25℃ F1.0)	Thermal Lens	25–75 mm F1.0
Field of View (H)	14.8° × 11° – 4.9° × 3.7° (optional 24° × 18° – 8° × 6°)	Visible Sensor	1/2.8″ starlight CMOS with integrated ICR dual-channel filter D/N switch
Visible Resolution	2 MP, 1920 × 1080	Minimum Illumination	0.001 Lux color, 0.0001 Lux B/W
Video Bitrate	32Kbps–16Mbps, 60Hz 30fps, ABF auto adjustment	Visible Lens	8–320 mm, 40× zoom, 2 MP motorized focus
PT Payload	10 kg	Pan/Tilt Range	Horizontal: 0–360° continuous, Vertical: +90° to -90°
PT Speed	Pan: 0.01–100°/s, Tilt: 0.01–60°/s, adaptive focus speed supported	Accuracy	0.1°
Presets	255 preset positions, supports lens zoom and focus presets	Modes	Supports 6 cruise lines, 1 apple-peel scan, 1 route cruise
واجهة الشبكة	RJ45, 10/100 Base-T adaptive (integrated video output RS422/485)	Network Protocols	TCP/IP, UDP, IPv4/v6, HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP, PSIA, ONVIF2.0, GB28181
درجة حرارة العمل	-25℃ to +60℃ (optional -40℃)	درجة حرارة التخزين	-45℃ to 70℃
تصنيف الحماية	IP66	استهلاك الطاقة	50W
مزود الطاقة	AC/DC24V, reverse connection protection	الوزن	≤8.5 kg (including PT)
