Radar de vigilancia de baja altitud MR-T20

Inicio > Productos > Radar de vigilancia de baja altitud MR-T20

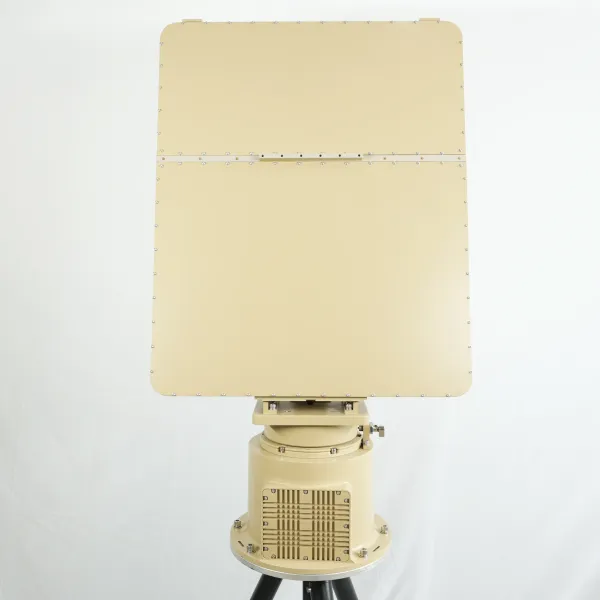

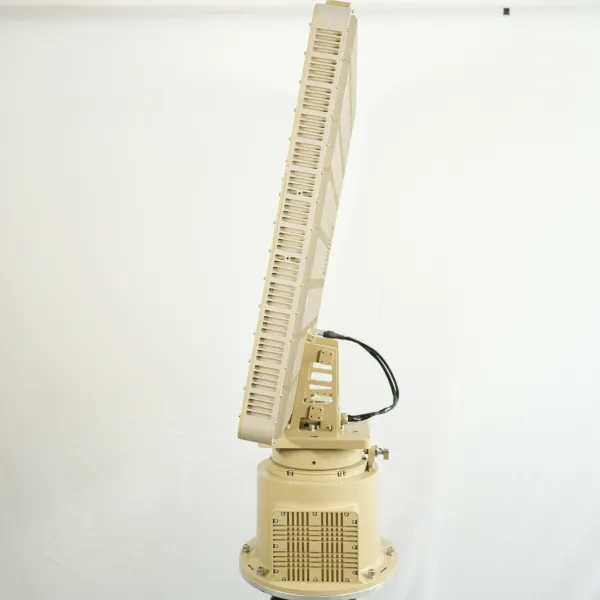

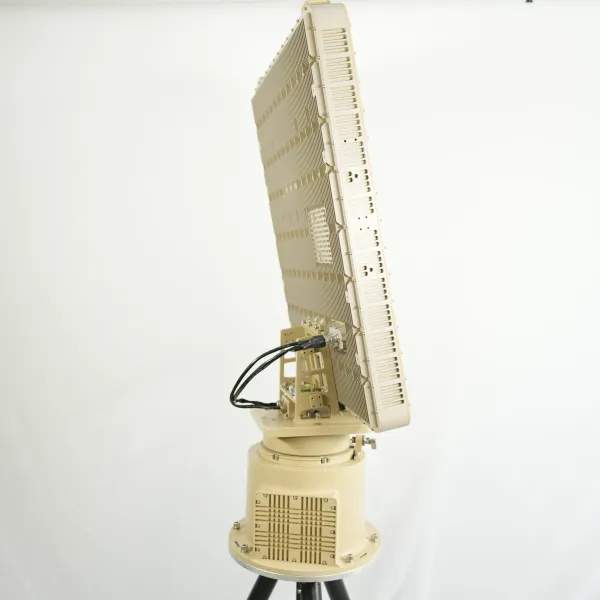

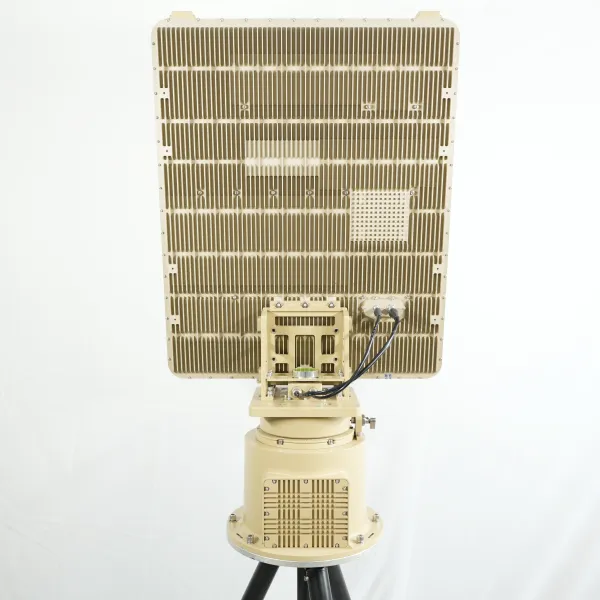

Radar de vigilancia de baja altitud T20
Radar de vigilancia de baja altitud T20
Radar de vigilancia de baja altitud T20
Radar de vigilancia de baja altitud T20
Radar de vigilancia de baja altitud T20
Radar de vigilancia de baja altitud T20
Radar de vigilancia de baja altitud T20
Radar de vigilancia de baja altitud T20
Radar de vigilancia de baja altitud T20
Radar de vigilancia de baja altitud T20
Radar de vigilancia de baja altitud

Specification for MR-T20 Low-Altitude Surveillance Radar

Descripción del producto:

The MR-T20 low-altitude surveillance radar is a three-dimensional radar system capable of integrated air, ground, and water surface detection. It can detect and continuously track drones, aircraft, birds, personnel, vehicles, and vessels within its coverage area. By utilizing simultaneous multi-beam technology and high-performance signal processing techniques, the radar can rapidly and accurately acquire target position and motion states even in complex multi-target environments. The radar adopts a continuous wave operation mode with low transmission power, significantly improving resistance to electromagnetic interception compared with pulse radar systems. Within cooperative detection systems, it serves as a core sensing unit, providing high-precision target data to electro-optical devices and other systems for coordinated operation.

Obtener presupuesto gratuito

Presentación del producto

The MR-T20 low-altitude surveillance radar integrates airspace, ground, and water surface detection into a unified system, enabling real-time monitoring of drones, aircraft, birds, vehicles, personnel, and vessels across extended ranges.

The radar utilizes mechanical azimuth scanning combined with elevation digital beam forming (DBF) technology, achieving full 360° azimuth coverage and efficient multi-target tracking capability.

With advanced signal processing and tracking algorithms, the system ensures stable performance and high detection accuracy in complex environments, including urban clutter scenarios.

Escenarios de aplicación

  • Small UAV Detection

  • Sea Surface UAV Detection

  • Airport Bird Detection

  • Vehicle-mounted Deployment

  • Counter-UAV Integrated System

Características del producto y medios técnicos

High Detection Accuracy
Provides precise measurement of distance, speed, azimuth, and altitude based on advanced signal processing and system architecture.

Large-Capacity Wide-Area Detection
Mechanical azimuth scanning and elevation DBF enable full 360° coverage and large-area multi-target detection.

High Refresh Rate and Precise Tracking
Advanced tracking algorithms improve tracking performance for high-speed and maneuverable targets.

High Sensitivity and Low False Alarm Rate
Clutter suppression technology ensures reliable detection of weak targets with low false alarm probability.

Strong Anti-Clutter Interference Capability
Enables stable tracking of ultra-low-altitude targets in complex urban environments.

Excellent Anti-Electromagnetic Interception Performance
Continuous wave operation reduces interception risk and enhances concealment and anti-interference performance.

Simple Operation and Portability
Lightweight modular design supports rapid deployment and high mobility operations.

Parámetros técnicos





Radar de vigilancia de baja altitud



Parameter Specification
Operating Band Banda X
Tecnología Mechanical Azimuth Scan + Elevation DBF

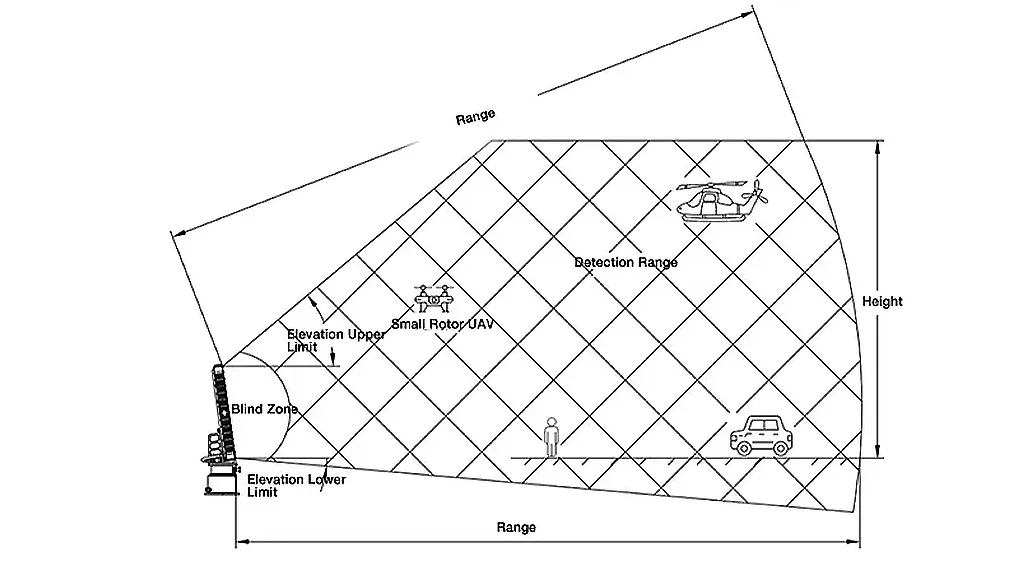

Detection Range 20 km
Maximum Detection Altitude 3000 m
Blind Zone 50 m
Azimuth Coverage 360°
Elevation Coverage -5° ~ 60°
Velocity Measurement Range 1–150 m/s
Small UAV Detection ≥10 km
Medium UAV Detection ≥20 km
Vehicle / Helicopter Detection ≥20 km
Range Accuracy ≤5 m
Velocity Accuracy ≤0.5 m/s
Angle Accuracy ≤0.3°
Refresh Rate 1s / 2s / 3s
Tracking Capacity ≥500 targets
Temperatura de funcionamiento -40℃ ~ +55℃
Protection Level IP66 (Host IP67)
Power Supply DC 36–52V
Power Consumption ≤400W
Comunicación Ethernet
Peso ≤55 kg

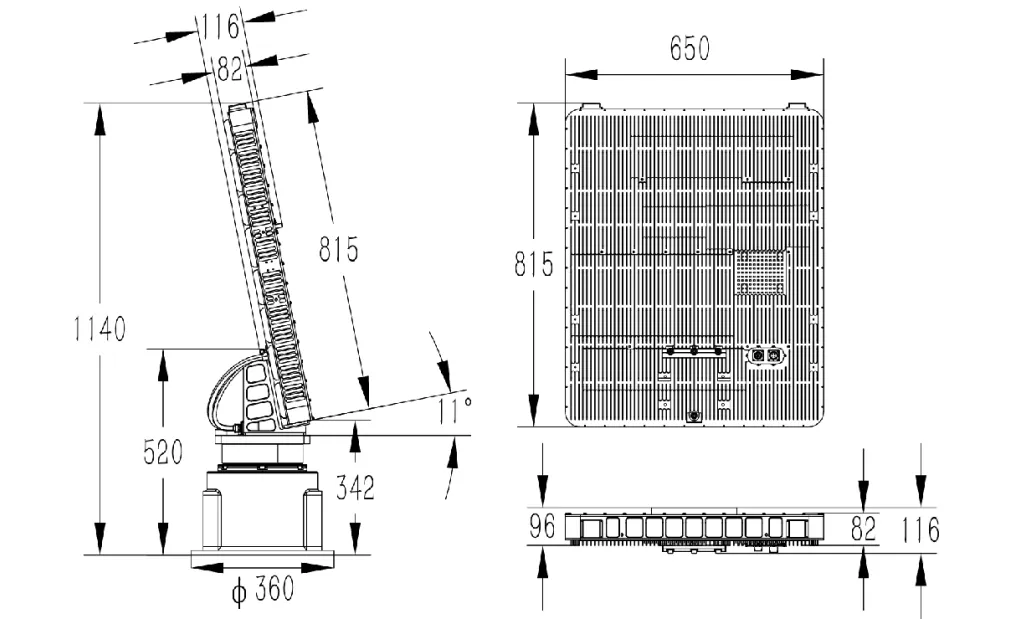

Size/Weight

 Item   Dimensions (mm) Weight (kg) Packed Dim (mm) Packed Wt (kg)
Host Unit ≤655*815*116 ≤25 ≤930*760*220 ≤40
Pedestal ≤520*Φ380 ≤27 ≤430*510*610 ≤40
Tripod ≤1100*450*450 ≤20 ≤1100*450*450 ≤23

Radar de vigilancia de baja altitud

Product List

No Name Qty Unit Description
1 Radar Host Unit 1 Unit
2 Radar Pedestal 1 Unit
3 Tripod 1 Unit
4 Radar Main Unit Transport Case 1 Unit Aluminum Alloy Transport Case
5 Radar Turntable Transport Case 1 Unit Aluminum Alloy Transport Case
6 Power Adapter 1 Cable AC220V to DC48V, Length 15m
7 Communication Cable 1 Cable Connects Radar to Display & Control Terminal, Length 15m
8 Assembly Tools & Screws 1 Set For assembling Host, Pedestal, Tripod
9 Document 1 Copy User Manual, etc. (Electronic Version)
