Specification for MR-G50 Surface Movement Radar

Descripción del producto:

The MR-G50 Surface Movement Radar is a one-dimensional active phased array radar capable of effectively detecting ground personnel, vehicles, and surface vessels. Utilizing intelligent beam dispatching and signal processing technology, it achieves rapid and precise tracking of multiple targets. Within a collaborative detection system, this radar can serve as the core perception unit, providing high-precision target data to other sensors (such as electro-optical devices and repulsion devices) for accurate guidance. It is widely applicable in various fields including oil field protection, critical site security, and border/coastal defense.

Obtener presupuesto gratuito

Presentación del producto

The MR-G50 surface movement radar adopts one-dimensional active phased array technology and supports ultra-long range detection of personnel, vehicles, and vessels.

With enhanced system performance, it enables reliable monitoring across large areas and complex environments.

Escenarios de aplicación

Coastal Defense Deployment
Radar/EO Cooperative Detection of Sea Targets
Seguridad fronteriza
Perimeter Intrusion Detection

Características del producto y medios técnicos

High Detection Accuracy
Provides precise range, velocity, and azimuth measurement.

Large-Capacity / Wide-Area Detection
Supports large-area monitoring with multi-target tracking.

High Refresh Rate / Precise Tracking
Ensures stable tracking of high-speed targets.

High Detection Sensitivity / Low False Alarm Rate
Maintains performance in complex clutter environments.

Fully Solid-State / High Reliability
No moving parts, reducing maintenance requirements.

Simple Operation / Portable
Modular design supports flexible deployment.

Parámetros técnicos

Parameter	Specification	Parameter	Specification
Operating Band	X-Band	Tecnología	1-D AESA
Detection Range	≥50 km	Blind Zone	≤150 m
Azimuth Coverage	90°	Elevation Coverage	7°
Velocity Measurement Range	1–60 m/s	Pedestrian Detection	≥15 km
Vehicle / Small Boat Detection	≥25 km	Large Vessel Detection	≥50 km
Range Accuracy	≤5 m	Velocity Accuracy	≤0.5 m/s
Angle Accuracy	≤0.25°	Refresh Rate	1 s (1Hz)
Tracking Capacity	≥200 targets	Temperatura de funcionamiento	-40℃ ~ +55℃
Operating Humidity	≤90%	Protection Rating	IP67
Power Supply	DC 18–28V	Power Consumption	≤200W
Comunicación	Ethernet (TCP/IP)	Peso	≤20 kg

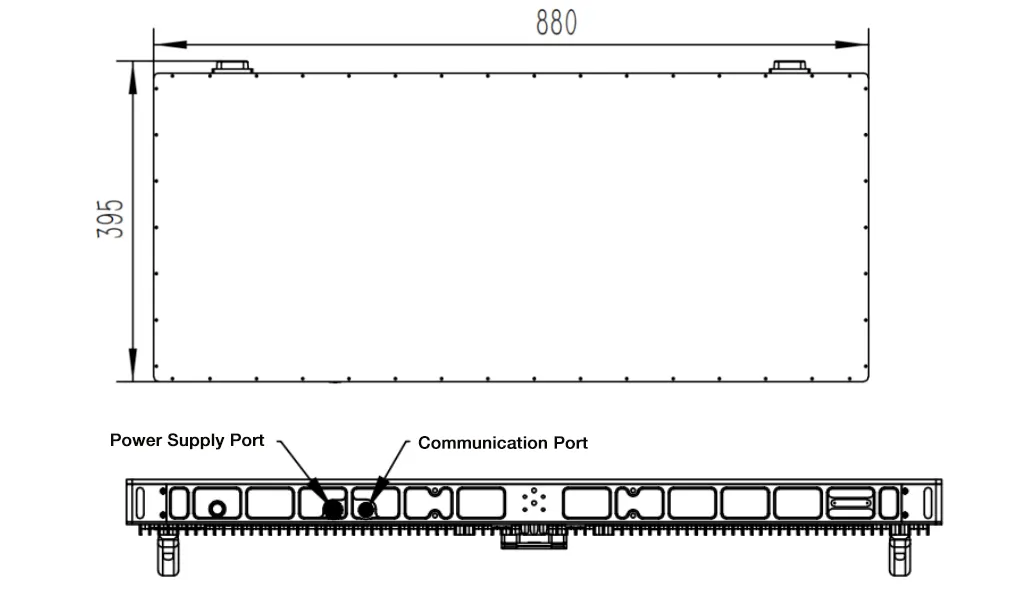

Dimensions/Weight: ≤10kg (excluding accessories)

Name

Dimensions

/mm

Peso

/kg

Dimensions/mm

Packed

Weight/kg

Packed

Main Unit

≤480*395*80

≤10

≤600*550*250

≤20

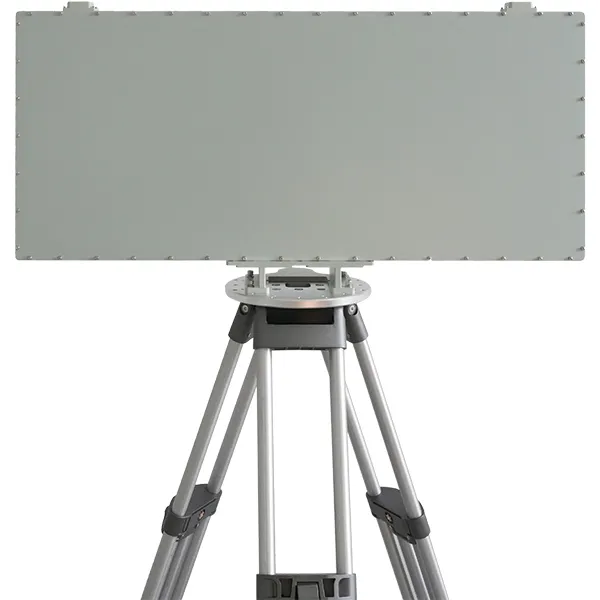

G50 Radar de movimiento en superficie

Product List

No.	Name	Quantity	Unit	Description
1	Radar Main Unit	1	Unit
2	Flight Case	1	Pc	Package for radar main unit
3	Power Adapter	1	Pc	AC220 to DC24V, Length 15m
4	Communication Cable	1	Pc	Connects radar to display/control terminal, Length 15m
5	Mounting Bracket & Accessories	1	Set	Accessories include mounting screws and wrench
6	Tripod	1	Pc	Optional, not included by default
7	Document	1	Copy	User Manual, etc. (Electronic version)
