Specification for MR-G03Q Surface Surveillance Radar

Descripción del producto:

The MR-G03Q Surface Surveillance Radar is a one-dimensional Digital Beam Forming (DBF) four-sided array radar capable of effectively detecting ground personnel, vehicles, and surface vessels. Utilizing intelligent beam dispatching and signal processing technology, it achieves rapid and precise tracking of multiple targets. Within a collaborative detection system, this radar can serve as the core perception unit, providing high-precision target data to other sensors (such as electro-optical devices and repulsion devices) for accurate guidance. It is widely applicable in various fields including oil field protection, critical site security, and border/coastal defense.

Obtener presupuesto gratuito

Presentación del producto

The MR-G03Q surface surveillance radar adopts one-dimensional DBF technology with a four-sided array structure, enabling full azimuth coverage.

It supports detection and tracking of ground personnel, vehicles, and surface vessels, and provides stable multi-target tracking performance in complex environments through intelligent beam dispatching and signal processing technology.

Escenarios de aplicación

Coastal Defense Deployment
Radar/EO Cooperative Detection of Sea Targets
Seguridad fronteriza
Perimeter Intrusion Detection

Características del producto y medios técnicos

High Detection Accuracy
Provides accurate measurement of range, velocity, and azimuth based on advanced signal processing algorithms.

Large-Capacity / Wide-Area Detection
Supports 360° azimuth coverage and real-time multi-target tracking.

High Refresh Rate / Precise Tracking
Advanced tracking filtering algorithms enhance tracking performance for fast-moving targets.

High Detection Sensitivity / Low False Alarm Rate
Clutter suppression technology enables detection of weak targets with low false alarm rate.

Fully Solid-State / High Reliability
No mechanical scanning components or cooling fans, ensuring high reliability and low maintenance.

Simple Operation / Portable
Lightweight modular design enables rapid deployment and high mobility.

Parámetros técnicos

Radar de vigilancia de superficie G03Q

Parameter	Specification	Parameter	Specification
Operating Band	Ku-Band	Tecnología	1-D DBF
Detection Range	≥10 km	Blind Zone	≤50 m

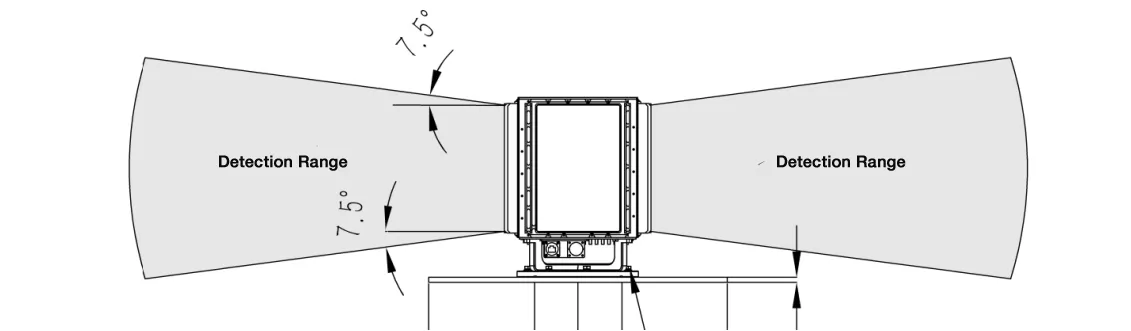

Azimuth Coverage	90°	Elevation Coverage	7°
Velocity Measurement Range	0.4–60 m/s	Pedestrian Detection	≥3 km
Vehicle / Small Boat Detection	≥6 km	Large Vessel Detection	≥10 km
Range Accuracy	≤4 m	Velocity Accuracy	≤0.5 m/s
Angle Accuracy	≤0.5°	Refresh Rate	≤0.25 s (4Hz)
Tracking Capacity	≥100 targets	Temperatura de funcionamiento	-40℃ ~ +55℃
Operating Humidity	≤90%	Protection Rating	IP67
Power Supply	DC 18–28V	Power Consumption	≤85W
Comunicación	Ethernet (TCP/IP)	Peso	≤5 kg

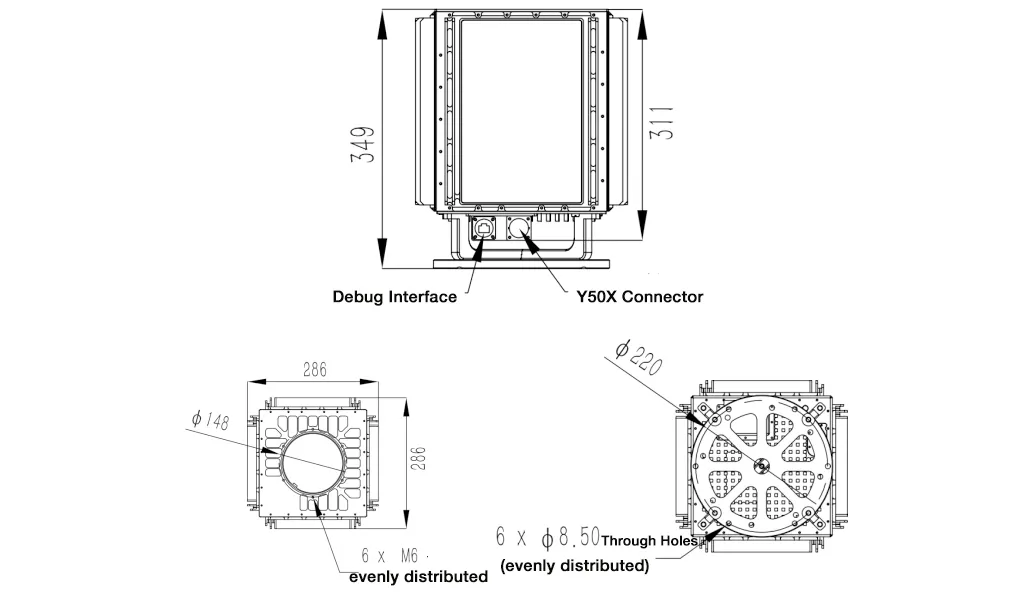

Dimensions/Weight: ≤5 kg (excluding accessories)

Name

Dimensions

/mm

Peso

/kg

Dimensions/mm

Packed

Weight/kg

Packed

Main Unit

≤336*240*70

≤5

≤600*450*250

≤12

Radar de vigilancia de superficie G03Q

Product List

No.	Name	Quantity	Unit	Description
1	Radar Main Unit	1	Unit
2	Power Adapter	1	Pc	AC220 to DC24V, Length 15 meters
3	Communication Cable	1	Pc	Connects radar to display/control terminal, Length 15m
4	Mounting Bracket & Accessories	1	Set	Accessories include mounting screws and wrench
5	Tripod	1	Pc	Optional, not included by default
6	Documentation	1	Copy	User Manual, etc. (Electronic version)
