500mm Ball-Type Stepper Motor Pan Tilt

Inicio > Productos > 500mm Ball-Type Stepper Motor Pan Tilt
Plataforma giratoria

500mm Ball-Type Stepper Motor Pan Tilt

Descripción del producto:

The YZ-BZ500QW is a ball-type stepper motor pan tilt designed for applications requiring stable horizontal and pitch movement, accurate positioning, and flexible lens control integration. It is suitable for outdoor monitoring, target observation, and auxiliary device control systems where durable structure, smooth motion, and reliable environmental performance are important. With a worm gear drive structure, vertical installation design, and outdoor-grade protection, it can be used in a wide range of field projects.

Obtener presupuesto gratuito

Presentación del producto

The YZ-BZ500QW is developed for outdoor deployment where dual-axis motion control, stable support structure, and flexible integration with lens modules are required. Its worm gear drive supports reliable horizontal and pitch rotation, while the ball-type mechanical platform makes it suitable for integrated systems carrying medium-load equipment, lenses, and auxiliary devices. It also supports preset positioning, optional lens module compatibility, adjustable focus and zoom control, multiple communication interfaces, and customizable power configurations for different engineering applications.

Escenarios de aplicación

  • Highway Monitoring

    Highway Monitoring

  • Acoustic Deterrence Systems

    Acoustic Deterrence Systems

  • Border Surveillance

  • Building Surveillance

    Perimeter Intrusion Detection

Product Features and Technical Specifications

Custom Speed Option: Horizontal and pitch speeds can be customized according to project requirements

Rotation Mode Option: Horizontal continuous rotation can be set to limited rotation; pitch angle can be customized

Communication Interface Options: RS422, RS232, or network port available

Protocol Option: PELCO_P optional

Power Supply Options: AC / DC 24V, with optional AC220V

Anti-Fog Option: Continuous dehumidification function available for humid environments

Low-Temperature Option: -40°C to +65°C available

Lens Module Compatibility: Optional support for FUJINON, COMPUTAR, KOWA, and other lens modules

Adjustable Lens Control: Focus and zoom speed can be adjusted independently

Auxiliary Switch Function: Normally open and normally closed auxiliary switches available

Timed Return Function: Supports query return and timed return

External Cable Outlet: Designed with external cable outlet structure

Outdoor Protection: Outdoor-type protection with IP66 rating

Technical Parameters

Item Specification
Model YZ-BZ500QW
Rotation Speed Horizontal: 0.01°–20°/s; Pitch: 0.01°–10°/s (speed customizable)
Rotation Angle Horizontal: 0°–360° continuous rotation (can be set to limited rotation); Pitch: -45° to +45° (customizable)
Preset Positions 200
Positioning Accuracy ±0.2°
Repeat Accuracy ±0.2°
Return Function Available (query return, timed return)
Auxiliary Switch Available (normally open, normally closed)
Lens Preset Position Available (supported; optional support for FUJINON, COMPUTAR, KOWA and other lens modules)
Lens Control Speed Available (supports installation; focus and zoom speed can be adjusted independently)
Automatic Cruise 8 lines, 8 preset points per line
Automatic Scanning Up to 1–60 minutes automatic scan dwell time
Automatic Tracking 1 line
Anti-fog Optional (under humid conditions 6.5–7.2V, can continuously dehumidify for 48 hours; the machine works normally and the surface has no obvious change)
Communication Protocol PELCO_D (PELCO_P optional)
Communication Baud Rate 9600 bps (2400 / 4800 / 19200 bps optional, customizable)
Communication Interface RS485 (RS422 / RS232 / network port optional)
Input Power Supply AC / DC 24V (AC220V optional)
Motor Power ≤180W (no heater), ≤230W (with heater)
Standby Power Consumption 5W, heater 50W
Working Temperature -25°C to +55°C, 90W mainboard, standard configuration (optional -40°C to +65°C)
Storage Temperature -40°C to +65°C
Load <40 kg
Dimensions 500 × 500 × 807 mm
Complete Machine Weight 80 kg
Cable Outlet Method External cable outlet
Drive Method Worm gear drive
Protection Grade IP66

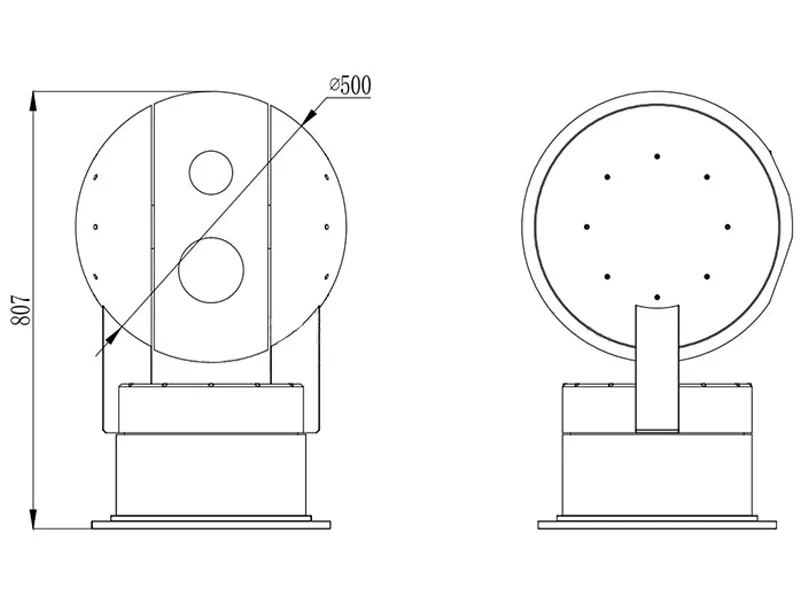

Dimensions Drawing
