10kg 360° Automatic Continuous Rotation Horizontal Pan Tilt
10kg 360° Automatic Continuous Rotation Horizontal Pan Tilt
Unidad panorámica de un eje

10kg 360° Automatic Continuous Rotation Horizontal Pan Tilt

Descripción del producto:

The YZ-BY010W-D is a 10kg 360° automatic continuous rotation horizontal pan tilt designed for stable horizontal rotation and reliable medium-load support. It features a positioning accuracy of ±0.1°, a horizontal speed range of 0.01°/s to 20°/s, and 0° to 360° continuous horizontal rotation. With a worm gear drive structure, IP66 protection, and support for fixed, vehicle-mounted, suspended, and shipborne applications, this pan tilt is suitable for a wide range of monitoring, tracking, and integrated system projects.

Obtener presupuesto gratuito

Presentación del producto

The standard model YZ-BY010W-D is a horizontal pan tilt with compact structure, stable performance, and automatic continuous rotation capability. It adopts a worm gear drive mode and provides self-locking performance for reliable horizontal rotation. The pan tilt supports a payload range of 10kg to 15kg, with a positioning accuracy of ±0.1°, a horizontal rotation speed of 0.01°/s to 20°/s, and 0° to 360° continuous rotation.

It is suitable for fixed installation and can also be configured for vehicle-mounted, suspended, and shipborne applications. Different communication protocols, interfaces, power supply options, and output cable configurations can be selected according to project requirements.

Escenarios de aplicación

  • Highway Monitoring

    Highway Monitoring

  • Acoustic Deterrence Systems

    Acoustic Deterrence Systems

  • Border Surveillance

  • Building Surveillance

    Perimeter Intrusion Detection

Product Features and Technical Specifications

Custom Colors: Army Green, Black, White, or customized colors

Rotation Mode Option: Horizontal 0° to 320° limited rotation available

Higher Speed Option: 30°/s to 55°/s available

Preset Expansion: Up to 1000 preset positions

Communication Protocols: PELCO_P, ModBus-RTU, or customized protocols

Communication Interfaces: RS485, RS232, or network interface

Power Supply Option: DC12V

Low-Temperature Option: -40°C to +65°C, non-condensing

Closed-loop Version: Absolute encoder or incremental encoder optional

Auxiliary Switches: 1–2 passive normally open switches optional

Special Installation Adaptation: Vehicle-mounted, suspended, and shipborne environments

Salt Spray Resistance Option: 48-hour salt spray resistance available under PH6.5–7.2 conditions

Customized Output Interfaces: Ordinary power, ordinary signal, optical slip ring, RF, and other customized configurations

Technical Parameters

Item Standard Configuration Optional / Remarks
Model YZ-BY010W-D —
Color Ice Gray Army Green, Black, White, customizable
Rotation Angle Horizontal: 0° to 360° continuous rotation Horizontal: 0° to 320° limited rotation
Rotation Speed Horizontal: 0.01°/s to 20°/s Horizontal: high speed 30°/s to 55°/s optional, the faster the speed the smaller the maximum load
Preset Position 200 1000
Positioning Accuracy ±0.1° None
Upper Power Supply Upper outlet slip ring No power supply (absolute encoder version / no-slip-ring version)
Angle Feedback Query feedback / real-time feedback Note: RS485 interface does not support real-time angle feedback
Auxiliary Switch None 1–2 sets, passive, normally open (commonly used for turntable power-on, signal, control and other linkage output)
Automatic Cruise 2 routes, 40 cruise points can be set for each route None
Automatic Home Return Can set 1 to 60 minutes automatic home return None
Automatic Scan 1 route None
Salt Spray None Under PH6.5–7.2, after continuous salt spray for 48 hours, no obvious change on the surface
Communication Protocol PELCO_D PELCO_P, ModBus-RTU, custom protocol
Baud Rate 9600bps 2400 / 4800 / 115200bps
Communication Interface RS422 RS485 / RS232 / network interface
Power Supply Voltage DC24V DC12V
Power Consumption ≤30W Note: depends on the selected functional configuration
Static Power Consumption ≤2W Note: depends on the selected functional configuration
Working Temperature -25°C to +65°C, non-condensing -40°C to +65°C, non-condensing
Storage Temperature -40°C to +65°C None
Load 10kg to 15kg Note: in dynamic conditions, when the payload center is 200mm above the plate, the faster the speed, the larger the angle, and the higher the center of gravity, the smaller the maximum load
Size 180 × 180 × 132 (L × W × H mm) None
Self Weight 4.5kg Note: depends on the selected functional configuration
Load Mounting Method Top mount None
Self-Locking Performance Self-locking None
Protection Grade IP66 None
Installation Environment Fixed installation Vehicle-mounted / suspended / shipborne
System Type Open-loop system (without encoder) Closed-loop system (absolute encoder / incremental encoder)
Upper Output Cable One standard signal cable (4-core) + one DC24V output power cable (2A) Ordinary power / ordinary signal / optical slip ring / RF (0~3G / 3G~18G) / other
Lower Output Cable One standard signal cable (4-core) + one DC24V input power cable (system power supply) + one RS422 (pan tilt communication) Ordinary power / ordinary signal / optical slip ring / RF (0~3G / 3G~18G) / other

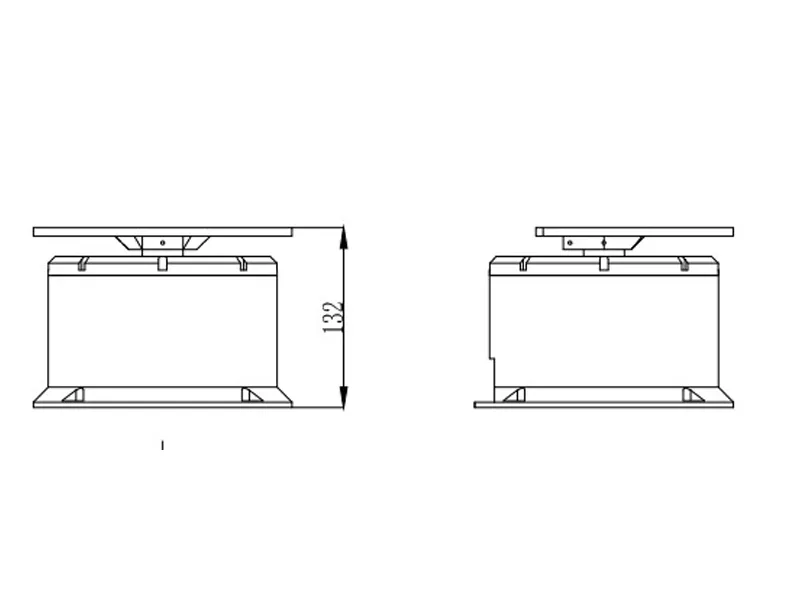

Dimensions Drawing

10kg 360° Automatic Continuous Rotation Horizontal Pan Tilt

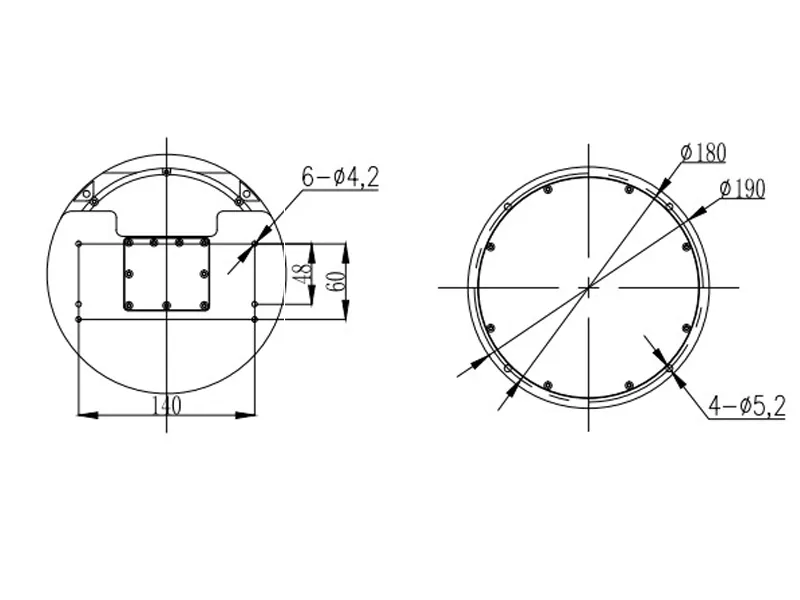

Installation Size Chart

10kg 360° Automatic Continuous Rotation Horizontal Pan Tilt
