[10kg] 1-Axis Automatic Single-Tilt Gimbal
10kg 1-Axis Automatic Single-Tilt Gimbal
[10kg] 1-Axis Automatic Single-Tilt Gimbal
10kg 1-Axis Automatic Single-Tilt Gimbal
Unidad panorámica de un eje

10kg 1-Axis Automatic Single-Tilt Gimbal

Descripción del producto:

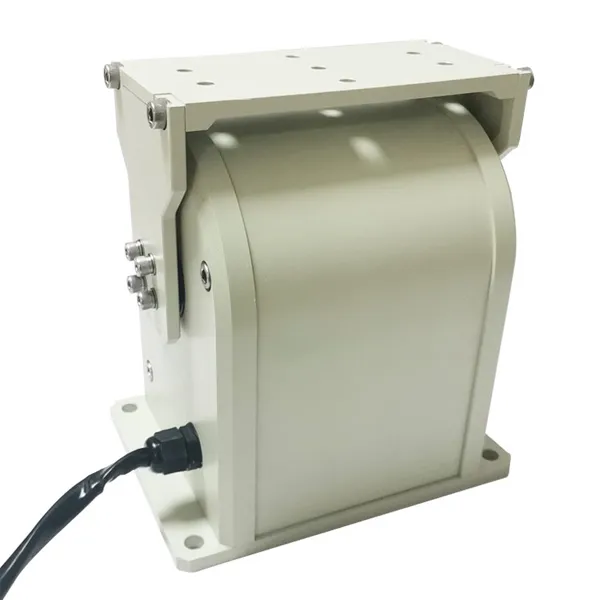

The YZ-BY010W-F is a 10kg 1-axis automatic single-tilt gimbal designed for stable tilt movement and reliable payload support. It features a positioning accuracy of ±0.1°, a tilt speed range of 0.01°/s to 10°/s, and a tilt angle range of -60° to +20°. With a worm gear drive structure, IP66 protection, and support for fixed, vehicle-mounted, and suspended installation, this gimbal is suitable for a wide range of monitoring, deterrence, and security applications.

Obtener presupuesto gratuito

Presentación del producto

The standard model YZ-BY010W-F supports fixed installation and can also be configured for vehicle-mounted, suspended, and marine use. With a maximum payload of 10kg, a tilt angle range of -60° to +20°, and a tilt speed range of 0.01°/s to 10°/s, it is designed for stable operation and accurate tilt control. The gimbal adopts a worm gear drive structure and offers self-locking performance, compact dimensions, and reliable operation in various installation environments. Different communication protocols, interfaces, power supply options, and output line configurations can also be customized according to project requirements.



Escenarios de aplicación

  • Highway Monitoring

    Highway Monitoring

  • Acoustic Deterrence Systems

    Acoustic Deterrence Systems

  • Border Surveillance

  • Building Surveillance

    Perimeter Intrusion Detection

Product Features and Technical Specifications

Custom Colors: Army Green, Black, White, or other custom colors

Extended Tilt Range: Customizable within -90° to +90°

Higher Tilt Speed: Optional 15°/s to 30°/s

More Preset Positions: Up to 1000 presets

Communication Protocols: PELCO-P, ModBus-RTU, or customized protocols

Communication Interfaces: RS485, RS232, or Network Port

Power Supply: DC48V optional

Closed-loop System: Absolute encoder or incremental encoder version

Auxiliary Switches: 1–2 dry contact channels optional

Special Environment Adaptation: Vehicle-mounted, suspended, marine applications

Customized Output Lines: USB3.0, Gigabit Ethernet, RF, optical fiber, and more

Technical Parameters

Item Standard Specification Optional Configuration
Model YZ-BY010W-F —
Color Ice Gray Army Green, Black, White, Customizable
Rotation Angle Tilt: -60° to +20° limited rotation Tilt can be customized within -90° to +90°. The larger the angle range, the lower the payload capacity.
Rotation Speed Tilt: 0.01°/s to 10°/s High-speed tilt: 15°/s to 30°/s optional. The higher the speed, the lower the payload capacity.
Preset Positions 200 1000
Positioning Accuracy ±0.1° —
Power-On Self-Test Supported No self-test (memory battery version / absolute encoder version)
Angle Feedback Query feedback / real-time feedback Note: RS485 interface does not support real-time feedback
Auxiliary Switch None 1–2 channels, dry contact, normally open (commonly used for satellite TV, signal transmission, and control linkage projects)
Auto Cruise 2 routes, 40 cruise points per route —
Auto Return Automatic return can be set from 1 to 60 minutes —
Auto Scan 1 route —
Salt Spray Resistance None Under pH 6.5–7.2, after 48 hours of continuous spray testing, no obvious surface change
Communication Protocol PELCO-D PELCO-P, ModBus-RTU, customized protocol
Baud Rate 9600bps 2400 / 4800 / 115200bps
Communication Interface RS422 RS485 / RS232 / Network Port
Power Supply Voltage DC24V DC48V
Power Consumption (Operating) ≤35W May vary depending on configuration
Power Consumption (Standby) ≤2W May vary depending on configuration
Working Temperature -25°C to +65°C, non-condensing -40°C to +65°C, non-condensing
Storage Temperature -40°C to +65°C —
Payload 10kg Note: When the center of gravity is 40mm directly above the top plate, increasing speed, increasing tilt angle, or raising the center of gravity will reduce the payload accordingly.
Dimensions 180 × 130 × 197 mm (L × W × H) Custom appearance available
Net Weight 5kg May vary depending on configuration
Mounting Method Top Mount Inverted Mount
Self-Locking Performance Self-locking —
Protection Level IP66 —
Installation Environment Fixed installation Vehicle-mounted / Suspended / Marine use
System Type Open-loop system (without encoder) Closed-loop system (absolute encoder / incremental encoder)
Upper Output Lines 1 standard load signal cable (4-core) + 1 DC24V output power cable (2A) Standard power / standard signal / high-power supply / USB3.0 / Gigabit Ethernet / RF (0–3G / 3G–18G) / optical fiber / others
Lower Output Lines 1 standard load signal cable (4-core) + 1 DC24V input power cable (system power supply) + 1 RS422 line (gimbal communication) Standard power / standard signal / high-power supply / USB3.0 / Gigabit Ethernet / RF (0–3G / 3G–18G) / optical fiber / others

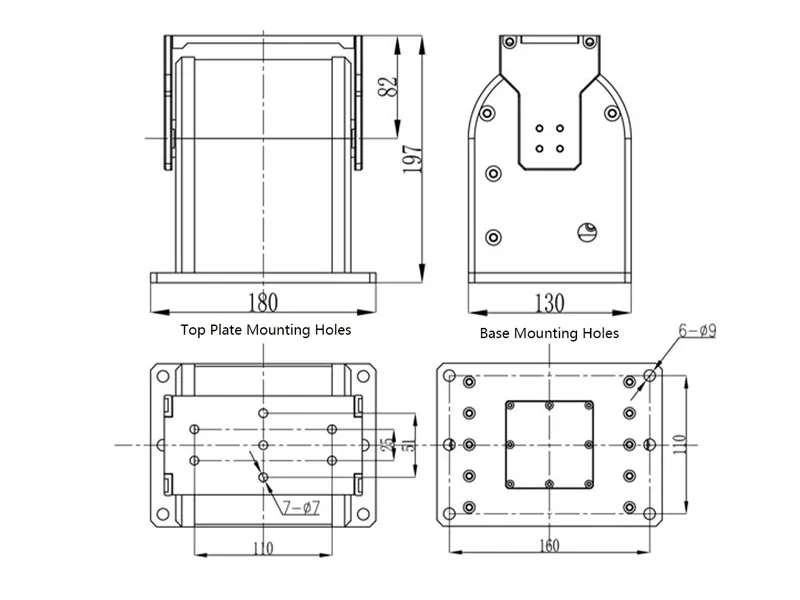

Dimensions Drawing

10kg 1-Axis Automatic Single-Tilt Gimbal2
