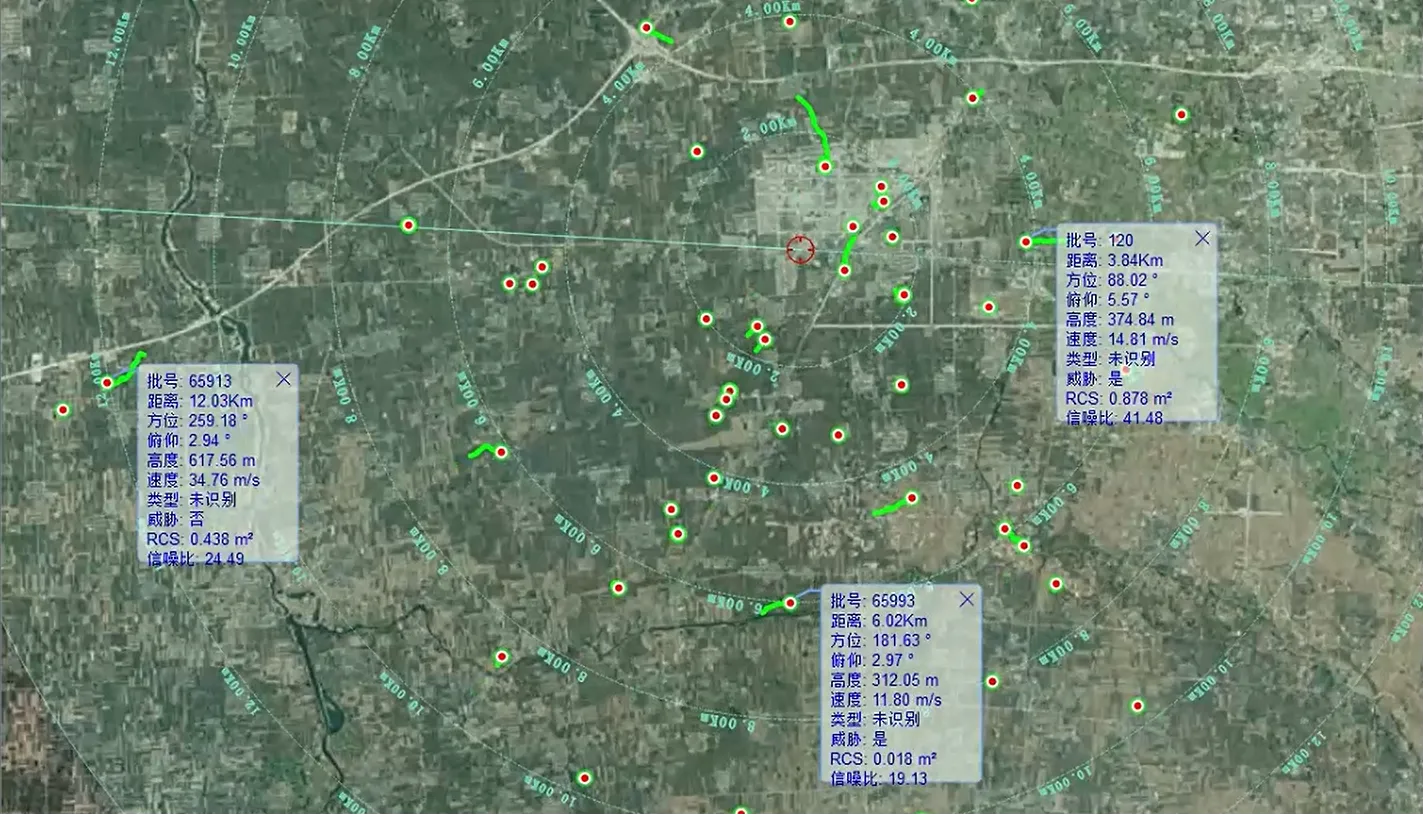

The MR-A15 Low Altitude Surveillance Radar is a 2D Active Electronically Scanned Array (AESA) 3D radar. It can rapidly detect and continuously track targets such as drones, aircraft, and birds, while simultaneously monitoring ground personnel, vehicles, and surface vessels. By employing intelligent beam scheduling and high-performance signal processing technology, it can quickly and accurately acquire the position and motion state of targets in complex, dense multi-target environments. Within a collaborative sensing system, this radar can serve as the core perception unit, providing high-precision target data to other sensors (such as electro-optical equipment and bird repellent systems) for precise guidance. This radar is widely applicable in various fields including critical site protection, the low-altitude economy, airport bird detection, air traffic control, and border and coastal defense.
Get Free QuoteThe MR-A15 low altitude surveillance radar adopts a 2D AESA architecture and supports rapid detection and continuous tracking of aerial, ground, and surface targets.
It is capable of monitoring drones, aircraft, birds, ground personnel, vehicles, and vessels within its operational coverage.
With intelligent beam scheduling and advanced signal processing, the radar maintains stable detection and tracking performance in complex multi-target environments.
High Detection Accuracy
Based on advanced signal processing algorithms and system hardware architecture, the radar provides accurate measurement of range, velocity, azimuth, and height.
Large Capacity & Wide-Area Detection
2D AESA design enables 360° azimuth coverage and real-time tracking of multiple targets.
High Refresh Rate & Accurate Tracking
High refresh rate and tracking algorithms enhance tracking capability for high-speed and maneuverable targets.
High Sensitivity & Low False Alarm Rate
Clutter suppression technology enables reliable detection of weak targets with low false alarm probability.
All-Solid-State & High Reliability
The absence of mechanical scanning components improves system reliability and reduces maintenance costs.
Flexible Beam Control
Supports TAS tracking capability for focused multi-target tracking.
| Parameter | Specification | Parameter | Specification |
| Operating Band | X-Band | التكنولوجيا | AESA |
| Detection Range | ≥8 km | Maximum Detection Altitude | 1500 m |

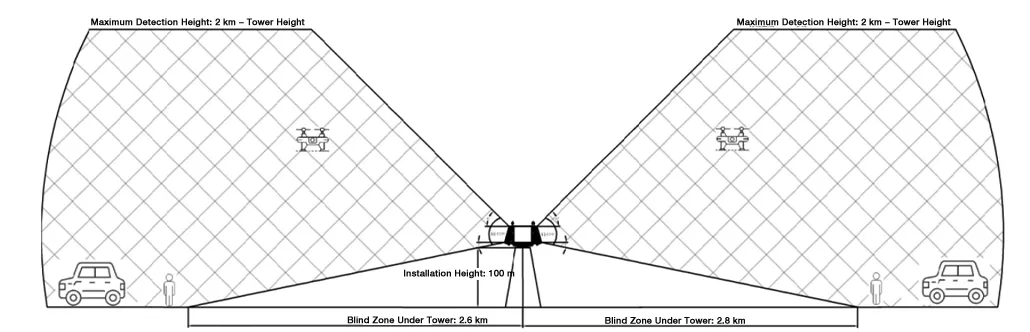

| Blind Zone | ≤100 m | Azimuth Coverage | 360° |
| Elevation Coverage | -2° ~ 45° | Velocity Measurement Range | 1–150 m/s |
| Small UAV Detection | ≥5 km | Vehicle / Helicopter Detection | ≥8 km |
| Range Accuracy | ≤8 m | Velocity Accuracy | ≤0.5 m/s |
| Angle Accuracy | ≤0.5° (Azimuth), ≤0.5° (Elevation) | Refresh Rate | 2.5s (TWS), 0.5s (TAS) |
| Tracking Capacity | ≥500 targets | Operating Temperature | -40℃ ~ +55℃ |
| Protection Rating | IP66 (Radar host IP67) | Power Supply | AC 220V/10A |
| Power Consumption | ≤1.6 kW (≤400W for single array) | Communication | Ethernet (TCP/IP) |
Product List
| No | Name | Qty | Unit | Description |
| 1 | Radar Host Unit | 4 | Unit | |
| 2 | Mounting Bracket | 1 | Set | |
| 3 | Tripod | 1 | Unit | Optional, not included by default |
| 4 | Single Array Transport Case | 4 | Unit | Aluminum Alloy Transport Case |
| 5 | Bracket Transport Case | 1 | Unit | Aluminum Alloy Transport Case |
| 6 | Power Adapter | 1 | Cable | AC 220V/16A, Length 15m |
| 7 | Communication Cable | 1 | Cable | Connects Radar to Display & Control Terminal, Length 15m |
| 8 | Assembly Tools & Screws | 1 | Set | For assembling Host, Pedestal, Tripod |
| 9 | Document | 1 | Copy | User Manual, etc. (Electronic Version) |
