إمالة المقلاة الأوتوماتيكية ثنائية المحور متغيرة السرعة بوزن 50 كجم

Product Description:

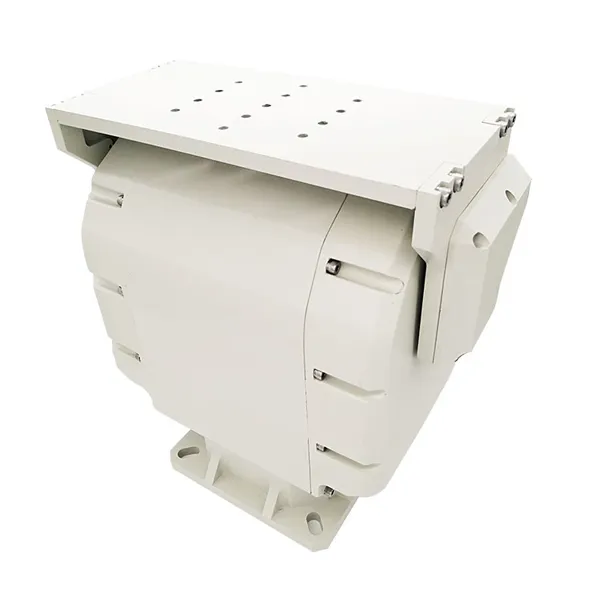

The YZ-BY050W is a customizable heavy-duty dual-axis pan tilt designed for applications requiring stable horizontal and pitch movement, accurate control, and dependable support for large payloads. It is suitable for outdoor surveillance, target observation, and auxiliary device integration where durable structure, flexible motion control, and reliable environmental performance are essential. With IP66 protection, worm gear drive, and multiple installation options, it can be adapted to a wide range of field projects.

Get Free Quote

Product Introduction

The YZ-BY050W is developed for outdoor deployment where high load capacity, dual-axis control, and flexible payload integration are required. Its worm gear drive structure supports stable horizontal and pitch movement, while the heavy-duty design makes it suitable for integrated systems carrying cameras, lasers, speakers, thermal imaging modules, radar, and other auxiliary devices. It can also be adapted for vehicle-mounted, marine, airborne, and inverted applications through optional interfaces, power supply configurations, cable routing methods, and closed-loop control solutions.

Application scenarios

Highway Monitoring
Acoustic Deterrence Systems
Border Surveillance
Perimeter Intrusion Detection

Product Features and Technical Specifications

Custom Colors: Army green, black, white, or customized colors

Rotation Mode Options: Horizontal 0° to 340° or 0° to 240° limited rotation available; pitch -90° to 90° limited angle rotation available

Higher Speed Options: Horizontal up to 10°/s or 30°/s optional; pitch up to 8°/s or 15°/s optional

Preset Expansion: Up to 1000 preset positions

Limit Switch Option: Photoelectric limit available for better performance in high- and low-temperature versions

Output Mode Options: 1–4 relay channels and RS interface available for auxiliary device control and alarm linkage

Communication Protocols: PELCO_P, ModBus-RTU, or custom protocols

Communication Interfaces: RS485, RS232, or network interface optional

Power Supply Options: DC48V or AC220V

Low-Temperature Option: -40°C to +65°C available

Cable Routing Option: Internal routing available

Installation Adaptation: Vehicle-mounted, marine, and airborne environments supported

Closed-loop Version: Optional encoder or absolute encoder available

Custom Dimension Option: Non-standard dimensions can be customized

Integrated Device Support: Optional integration for camera, laser, speaker, high-power fill light, USB3.0, infrared thermal imaging, radar, and 4G

Dehumidification Option: Suitable for humid environments with continuous dehumidification support

Technical Parameters

Item	Basic Indicators	Optional
Model	YZ-BY050W	—
Basic Configuration	Basic version	Optional
Color	Ice gray	Army green, black, white, customizable
Rotation Angle	Horizontal: 0°–360° continuous rotation; Pitch: 45° to -45° angle rotation	Horizontal: 0°–340° limited rotation / 0°–240° limited rotation; Pitch: -90° to 90° limited angle rotation; the larger the overrun angle, the smaller the maximum load
Rotation Speed	Horizontal: 0.01°/s–8°/s; Pitch: 0.01°/s–4°/s	Horizontal: up to 10°/s / 30°/s optional; Pitch: up to 8°/s / 15°/s optional; the higher the speed, the smaller the maximum load
Preset Positions	200	1000
Positioning Accuracy	±0.1°	None
Limit Switch	Upper limit switch	Photoelectric limit (better suited for high- and low-temperature versions)
Return Function	Return to home / timed return	Note: RS485 interface does not support timed return
Output Mode	None	1–4 channels, relays, RS?? (used for controlling auxiliary devices, alarms, etc.)
Automatic Cruise	2 lines, 4 preset points per line	None
Automatic Scanning	Up to 1–60° automatic scan	None
Automatic Tracking	1 line	None
Heater	None	In humid environments with 6.5–7.2? V, continuous dehumidification for 48 hours, with no visible surface change
Communication Protocol	PELCO_D	PELCO_P, ModBus-RTU, custom protocol
Baud Rate	9600 bps	2400 / 4800 / 115200 bps
Communication Interface	RS422	RS485 / RS232 / network interface
Power Supply Voltage	DC24V	DC48V / AC220V
Operating Power	≤90W	Note: varies with the optional motorized pan tilt configuration
Standby Power	≤2W	Note: varies with the optional motorized pan tilt configuration
Working Temperature	-25°C to +65°C, standard configuration	-40°C to +65°C, optional
Storage Temperature	-40°C to +65°C	None
Load	50kg (center of gravity height not more than 50mm)	Note: the higher the speed and overrun angle, the smaller the maximum load capacity

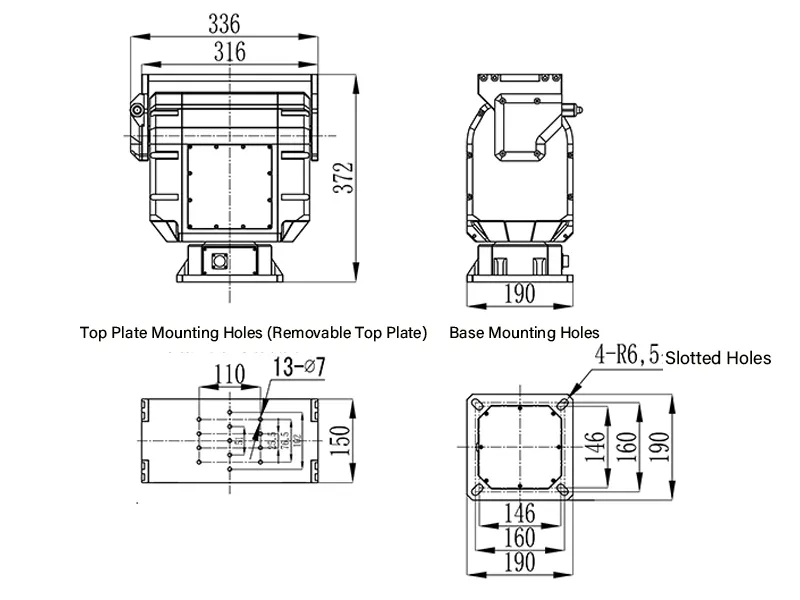

Dimensions	336 × 190 × 372 (L × W × H mm)	Non-standard dimensions / customizable
Net Weight	22kg	Note: varies with the optional motorized pan tilt configuration
Cable Routing	External routing	Internal routing
Protection Rating	IP66	None
Installation Environment	Outdoor installation	Vehicle-mounted / marine / airborne
System Type	Open-loop system (no encoder)	Closed-loop system (optional encoder / absolute encoder)
Upper Output Cable	One high-flex integrated cable (4 cores); one DC24V output cable (2A)	With camera / laser / speaker / high-power fill light / USB3.0 / infrared thermal imaging / radar (0–36/36–18G) / 4G
Lower Output Cable	One high-flex integrated cable (4 cores); one DC24V input power cable (system power supply); one RS422 (pan tilt control)	With camera / laser / speaker / high-power fill light / USB3.0 / infrared thermal imaging / radar (0–36/36–18G) / 4G
